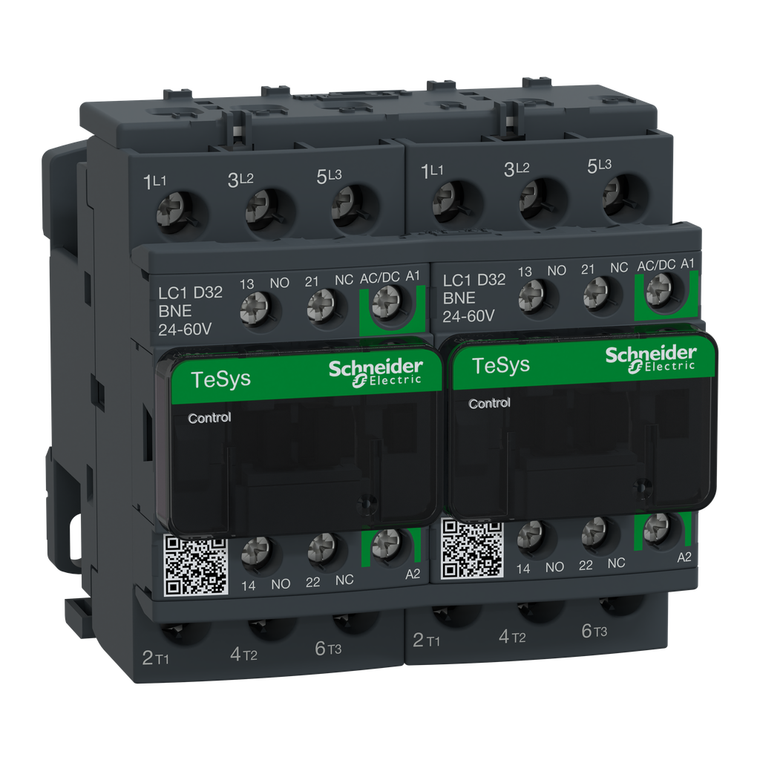

Schneider Electric LC2D32BNE TeSys Deca reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LC2D32BNE TeSys Deca reversing contactor - 3P - <= 440 V - 32 A AC-3 - 24...60 V AC/DC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LC2D32BNE

UPC:

MPN:

LC2D32BNE

Condition:

New

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP20 front face IEC 60529

Rated Breaking Capacity:

550 A at 440 V for power circuit conforming to IEC 60947

Sustainable Offer Status:

Green Premium product

Pole Contact Composition:

3 NO

Ambient Air Temperature For Operation:

-40-60°C || 60-70°C with derating

Irms Rated Making Capacity:

140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 550 A at 440 V for power circuit conforming to IEC 60947

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

0...9842.52 ft (0...3000 m)

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

Mercury Free:

Yes

Minimum Switching Current:

5 mA for Signaling circuit

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

reversing contactor

Warranty:

18 months

Mechanical Robustness:

vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms

Maximum Horse Power Rating:

2 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 20 hp at 460/480 V AC 60 Hz for 3 phase motors || 25 hp

Control Circuit Type:

AC 50/60 Hz AC/DC electronic || DC AC/DC electronic

Halogen Content Performance:

Halogen free plastic parts & cables product

Coil Technology:

built-in bidirectional peak limiting

Associated Fuse Rating:

10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 63 A gG at <= 690 V coordination type 2 for power circuit

Mechanical Durability:

15 Mcycles

Hold-In Power Consumption In W:

0.6-0.6 W 20°C

Environmental Disclosure:

ENVPEP1609001EN

Circularity Profile:

ENVEOLI1609001EN

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms for Signaling circuit || 260 A 40°C - 10 s for power circuit || 430 A 40°C - 1 s for power circuit || 60 A 40°C - 10 min for power circuit || 138 A 40°C - 1 m

Minimum Switching Voltage:

17 V for Signaling circuit

Pollution Degree:

3

Product Name:

Tesys Deca green || TeSys Deca

Net Weight:

0.923 kg

[Ie] Rated Operational Current:

32 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 50 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 32 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Ambient Air Temperature For Storage:

-60-80°C

Device Presentation:

preassembled with reversing power busbar

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C) for Signaling circuit || 50 A (at 60°C) for power circuit

[Uc] Control Circuit Voltage:

24...60 V AC 50/60 Hz || 24...60 V DC

Average Impedance:

2 mOhm - Ith 50 A 50 Hz for power circuit

Interlocking Type:

mechanical

Weight:

0.923 kg

Device Short Name:

LC2D

Flame Retardance:

V1 conforming to UL 94

Country of Origin:

France

Utilisation Category:

AC-1 || AC-3

Range:

TeSys || TeSys Deca

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Climatic Withstand:

IACS E10 || IEC 60947-1 Annex Q category D
