Schneider Electric LC2D32EHE TeSys Deca reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil
Schneider Electric
$215.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

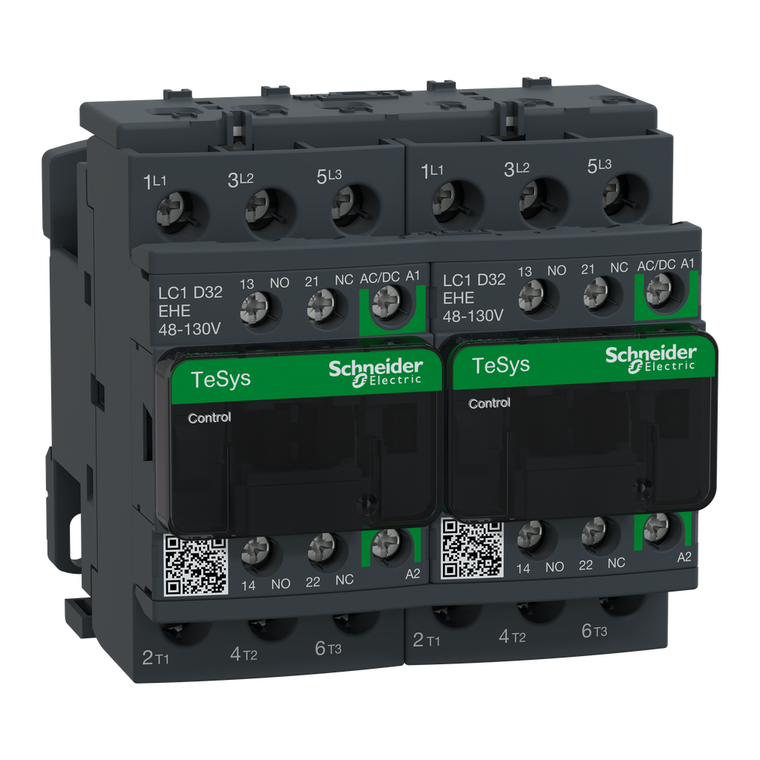

Schneider Electric LC2D32EHE TeSys Deca reversing contactor - 3P - <= 440 V - 32 A AC-3 - 48...130 V AC/DC coil
LC2D32EHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 32A AC-3 15kW@400V, it includes a 48-130V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D32EHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 15kW@400V. It includes a 48-130V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 90mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 2 million cycles at 32A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Connection by screw clamp terminals.
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Sustainable Offer Status:
- Green Premium product
- Poles Description:
- 3P
- Mechanical Robustness:
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
- [Uc] Control Circuit Voltage:
- 48...130 V AC 50/60 Hz || 48...130 V DC
- Control Circuit Type:
- AC 50/60 Hz AC/DC electronic || DC AC/DC electronic
- Standards:
- EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
- Overvoltage Category:
- III
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 550 A at 440 V for power circuit conforming to IEC 60947
- Product Name:
- Tesys Deca green || TeSys Deca
- Warranty:
- 18 months
- Flame Retardance:
- V1 conforming to UL 94
- Hold-In Power Consumption In Va:
- 1.3-1.3 VA 20°C) 50/60 Hz
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz
- Device Short Name:
- LC2D
- Inrush Power In W:
- 24-24 W 20°C
- Mounting Support:
- rail || plate
- Mercury Free:
- Yes
- Interlocking Type:
- mechanical
- Protective Treatment:
- TH IEC 60068-2-30
- Ambient Air Temperature For Operation:
- -40-60°C || 60-70°C with derating
- Connections - Terminals:
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
- Operating Time:
- 45...55 ms closing || 20...90 ms opening
- [Icw] Rated Short-Time Withstand Current:
- 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms for Signaling circuit || 260 A 40°C - 10 s for power circuit || 430 A 40°C - 1 s for power circuit || 60 A 40°C - 10 min for power circuit || 138 A 40°C - 1 m
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Maximum Horse Power Rating:
- 2 hp at 115 V AC 60 Hz for 1 phase motors || 5 hp at 230/240 V AC 60 Hz for 1 phase motors || 10 hp at 200/208 V AC 60 Hz for 3 phase motors || 10 hp at 230/240 V AC 60 Hz for 3 phase motors || 20 hp at 460/480 V AC 60 Hz for 3 phase motors || 25 hp
- Weight:
- 0.923 kg
- [Ui] Rated Insulation Voltage:
- power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1
- Signaling Circuit Frequency:
- 25...400 Hz
- Heat Dissipation:
- 0.8-0.8 W 50/60 Hz
- Halogen Content Performance:
- Halogen free plastic parts & cables product
- Net Weight:
- 0.923 kg
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 50 A (at 60°C) for power circuit
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || power
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Contactor Application:
- motor control || resistive load
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Environmental Disclosure:
- ENVPEP1609001EN
- Pole Contact Composition:
- 3 NO
- Pollution Degree:
- 3
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 63 A gG at <= 690 V coordination type 2 for power circuit
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Average Impedance:
- 2 mOhm - Ith 50 A 50 Hz for power circuit
- Depth:
- 92 mm
- Motor Power Kw:
- 7.5 kW at 220...230 V AC 50 Hz || 15 kW at 380...400 V AC 50 Hz || 15 kW at 415 V AC 50 Hz || 15 kW at 440 V AC 50 Hz || 18.5 kW at 500 V AC 50 Hz || 18.5 kW at 660...690 V AC 50 Hz
- Rohs Exemption Information:
- Yes
