Schneider Electric LC2D40AB7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 24 V AC coil
Schneider Electric
$667.08
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

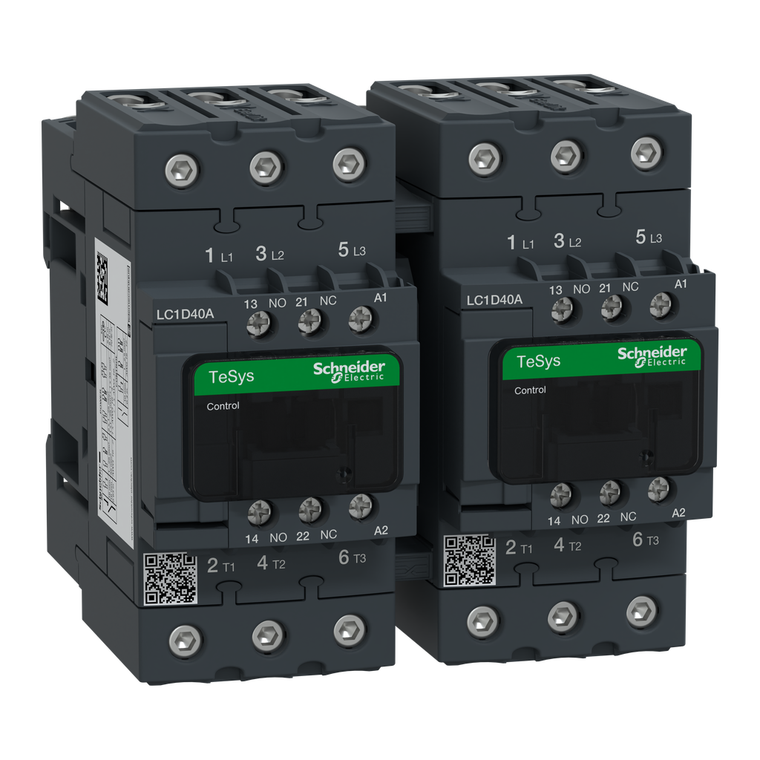

Schneider Electric LC2D40AB7 TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 40 A - 24 V AC coil
LC2D40AB7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 40A AC-3 18.5kW@400V, it includes a 24V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D40AB7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 18.5kW@400V. It includes a 24V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
- Electrical Durability:
- 1.5 Mcycles 40 A AC-3 <= 440 V || 1.4 Mcycles 60 A AC-1 <= 440 V || 1.5 Mcycles 40 A AC-3e <= 440 V
- Net Weight:
- 1.87 kg
- Country of Origin:
- United States
- [Icw] Rated Short-Time Withstand Current:
- 72 A 40°C - 10 min for power circuit || 165 A 40°C - 1 min for power circuit || 320 A 40°C - 10 s for power circuit || 720 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
- Sustainable Offer Status:
- Green Premium product
- Standards:
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Overvoltage Category:
- III
- Inrush Power In Va:
- 140-140 VA 60 Hz cos phi 0.75 (at 20°C) || 160-160 VA 50 Hz cos phi 0.75 (at 20°C)
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Warranty:
- 18 months
- Climatic Withstand:
- IACS E10 || IEC 60947-1 Annex Q category D
- Mounting Support:
- rail || plate
- Heat Dissipation:
- 4-5 W 50/60 Hz
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Rohs Exemption Information:
- Yes
- Hold-In Power Consumption In Va:
- 13-13 VA 60 Hz cos phi 0.3 (at 20°C) || 15-15 VA 50 Hz cos phi 0.3 (at 20°C)
- Height:
- 122 mm
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Toxic Heavy Metal Free:
- Yes
- Tightening Torque:
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connecto
- Depth:
- 120 mm
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Range:
- TeSys || TeSys Deca
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Product Name:
- TeSys D || TeSys Deca
- Motor Power Kw:
- 11 kW at 220...230 V AC 50-60 Hz || 18.5 kW at 380...400 V AC 50-60 Hz || 22 kW at 415 V AC 50-60 Hz || 22 kW at 440 V AC 50-60 Hz || 22 kW at 500 V AC 50-60 Hz || 30 kW at 660...690 V AC 50-60 Hz
- Rated Breaking Capacity:
- 800 A at 440 V for power circuit conforming to IEC 60947
- Device Short Name:
- LC2D
- Environmental Disclosure:
- ENVPEP1503009EN
- Mechanical Robustness:
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Eu Rohs Directive:
- Compliant
- Ambient Air Temperature For Operation:
- -40-60°C || 60-70°C with derating
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- Pole Contact Composition:
- 3 NO
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Poles Description:
- 3P
- Associated Fuse Rating:
- 10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 80 A gG at <= 690 V coordination type 1 for power circuit || 80 A gG at <= 690 V coordination type 2 for power circuit
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Protective Treatment:
- TH IEC 60068-2-30
- Control Circuit Voltage Limits:
- 0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz
- Flame Retardance:
- V1 conforming to UL 94
- Coil Technology:
- without built-in suppressor module
- Mechanical Durability:
- 6 Mcycles
- Device Presentation:
- preassembled with reversing power busbar
- Product Certifications:
- UL || CSA || RINA || GOST || CCC || DNV || LROS (Lloyds register of shipping) || GL || BV || UKCA
- Width:
- 119 mm
- Interlocking Type:
- mechanical
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 60 A (at 60°C) for power circuit
- [Ue] Rated Operational Voltage:
- power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
