Schneider Electric LC2D40AG7TQ reversing contactor TeSys Deca - 3 poles - AC-3 - 440V 40A - coil 120V AC 60 Hz - TQPKG

Schneider Electric LC2D40AG7TQ reversing contactor TeSys Deca - 3 poles - AC-3 - 440V 40A - coil 120V AC 60 Hz - TQPKG

Schneider Electric
SKU:
LC2D40AG7TQ
$667.08
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

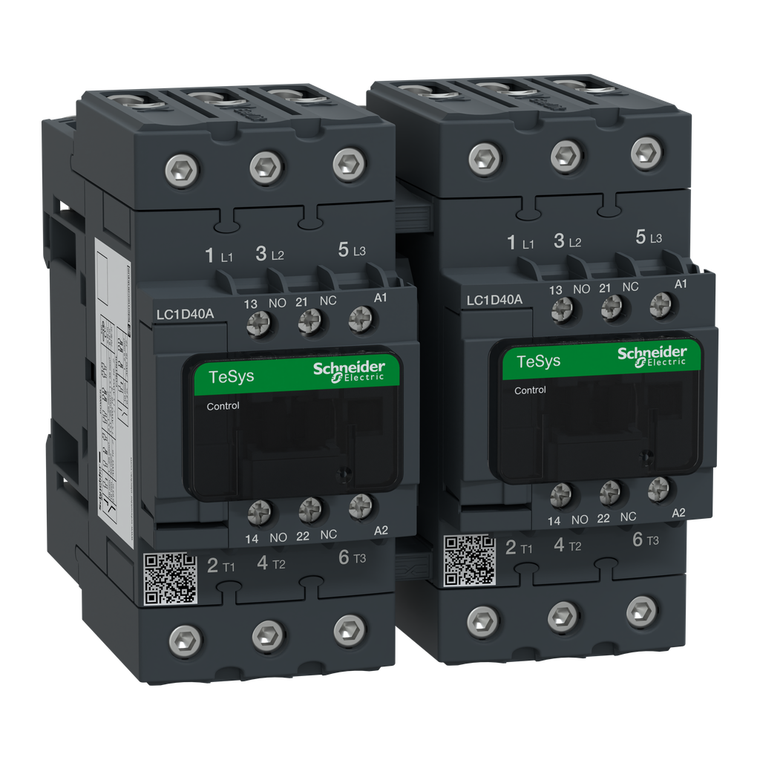

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 40A/590V AC-3 (18.5kW@400V). It provides low consumption 100-250V AC/DC coils with electronic control, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Additional Information
Net Weight:
1.87 kg
[Ui] Rated Insulation Voltage:
power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
Operating Time:
4...19 ms opening || 12...26 ms closing
Device Short Name:
LC2D
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Inrush Power In Va:
160-160 VA 60 Hz 0.75 20°C)
Hold-In Power Consumption In Va:
13-13 VA 20°C) 0.3 60 Hz
Eu Rohs Directive:
Compliant
Maximum Operating Rate:
3600 cyc/h 60°C
Country of Origin:
France
Weight:
1.87 kg
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-70°C drop-out AC 60 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 60 Hz
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Rated Breaking Capacity:
800 A at 220/415/440 V for power circuit conforming to IEC 60947
Mechanical Durability:
6000000 cycles
Circularity Profile:
ENVEOLI1503009EN
Connections - Terminals:
control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
Product Certifications:
CCC || CSA || DNV || EAC || UKCA
[Ue] Rated Operational Voltage:
power circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Heat Dissipation:
4-5 W 60 Hz
Auxiliary Contacts Type:
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Auxiliary Contact Composition:
1 NO + 1 NC
Pollution Degree:
3
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed10 Gn for 11 ms || shocks contactor open15 Gn for 11 ms
Pole Contact Composition:
3 NO
Protective Cover:
with
Contactor Application:
resistive load || motor control
[Ie] Rated Operational Current:
60 A (at <60°C) at <= 440 V AC AC-1 for power circuit || 40 A (at <60°C) at <= 440 V AC AC-3 for power circuit
Coil Technology:
built-in bidirectional peak limiting diode suppressor
Electrical Durability:
1.5 Mcycles 40 A AC-3 <= 440 V || 1.4 Mcycles 60 A AC-1 <= 440 V
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-60-80°C
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connecto
Control Circuit Type:
AC 60 Hz
Insulation Resistance:
> 10 MOhm for Signaling circuit
Pvc Free:
Yes
Mounting Support:
plate || rail
Motor Power Kw:
18.5 kW at 380...400 V AC 50 Hz || 11 kW at 220...230 V AC 50 Hz || 22 kW at 415...440 V AC 50 Hz || 22 kW at 500 V AC 50 Hz || 30 kW at 660...690 V AC 50 Hz
Standards:
CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
[Icw] Rated Short-Time Withstand Current:
100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms for Signaling circuit || 320 A 40°C - 10 s for power circuit || 720 A 40°C - 1 s for power circuit || 72 A 40°C - 10 min for power circuit || 165 A 40°C - 1 m
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Product Or Component Type:
reversing contactor
Average Impedance:
1.5 mOhm - Ith 60 A 50 Hz for power circuit
