Schneider Electric LC2D50AEHE TeSys Deca reversing contactor - 3P - <= 440 V - 50 A AC-3 - 48...130 V AC/DC coil
Schneider Electric
$347.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

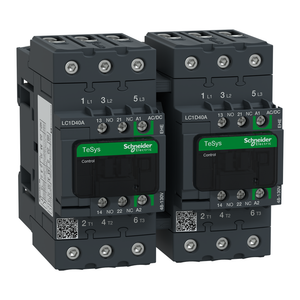

Schneider Electric LC2D50AEHE TeSys Deca reversing contactor - 3P - <= 440 V - 50 A AC-3 - 48...130 V AC/DC coil
LC2D50AEHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 50A AC-3 22kW@400V, it includes a 48-130V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D50AEHE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 22kW@400V. It includes a 48-130V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 48-130V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 50A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
- Overvoltage Category:
- III
- Flame Retardance:
- V1 conforming to UL 94
- Weight:
- 2.164 kg
- Auxiliary Contacts Type:
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Mechanical Robustness:
- vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
- Mounting Support:
- rail || plate
- Device Short Name:
- LC2D
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Hold-In Power Consumption In W:
- 0.9-0.9 W 20°C
- Environmental Disclosure:
- ENVPEP1607010EN
- Average Impedance:
- 1.5 mOhm - Ith 80 A 50 Hz for power circuit
- Protective Cover:
- with
- Protective Treatment:
- TH IEC 60068-2-30
- [Ith] Conventional Free Air Thermal Current:
- 10 A (at 60°C) for Signaling circuit || 80 A (at 60°C) for power circuit
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Country of Origin:
- France
- Halogen Content Performance:
- Halogen free plastic parts & cables product
- Product Name:
- Tesys Deca green || TeSys Deca
- Mercury Free:
- Yes
- [Ie] Rated Operational Current:
- 50 A (at <60°C) at <= 440 V AC-3 for power circuit || 80 A (at <60°C) at <= 440 V AC-1 for power circuit
- Minimum Switching Voltage:
- 17 V for Signaling circuit
- Width:
- 119 mm
- Hold-In Power Consumption In Va:
- 1.4-1.4 VA 20°C) 50/60 Hz
- Depth:
- 120 mm
- Maximum Horse Power Rating:
- 3 hp at 115 V AC 60 Hz for 1 phase motors || 7.5 hp at 230/240 V AC 60 Hz for 1 phase motors || 15 hp at 200/208 V AC 60 Hz for 3 phase motors || 15 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 40 h
- Inrush Power In W:
- 19-19 W 20°C
- Heat Dissipation:
- 0.9-0.9 W 50/60 Hz
- Control Circuit Type:
- AC 50/60 Hz AC/DC electronic || DC AC/DC electronic
- Pole Contact Composition:
- 3 NO
- Coil Technology:
- built-in bidirectional peak limiting
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Operation:
- -40-60°C || 60-70°C with derating
- Connections - Terminals:
- control circuit screw clamp terminals 1 1-4 mm²flexible without cable end || control circuit screw clamp terminals 2 1-4 mm²flexible without cable end || control circuit screw clamp terminals 1 1-4 mm²flexible with cable end || control circuit scr
- Fire Resistance:
- 850°C IEC 60695-2-1
- Warranty:
- 18 months
- Power Dissipation Per Pole:
- 3.7 W AC-3 || 9.6 W AC-1
- [Ue] Rated Operational Voltage:
- power circuit 690 V AC 25...400 Hz
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 900 A at 440 V for power circuit conforming to IEC 60947
- [Ui] Rated Insulation Voltage:
- power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1
- Control Circuit Voltage Limits:
- <= 0.1 Uc -40-70°C drop-out AC/DC || 0.85...1.1 Uc -40-60°C operational AC/DC || 1...1.1 Uc 60-70°C operational AC/DC
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Product Certifications:
- CCC || CSA || EAC || UL || KC || DNV-GL || LROS (Lloyds register of shipping) || UKCA
- Device Presentation:
- preassembled with reversing power busbar
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
