Schneider Electric LC2D65ABNE TeSys Deca reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24...60 V AC/DC coil

Schneider Electric LC2D65ABNE TeSys Deca reversing contactor - 3P - <= 440 V - 65 A AC-3 - 24...60 V AC/DC coil

Schneider Electric
SKU:
LC2D65ABNE
$412.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

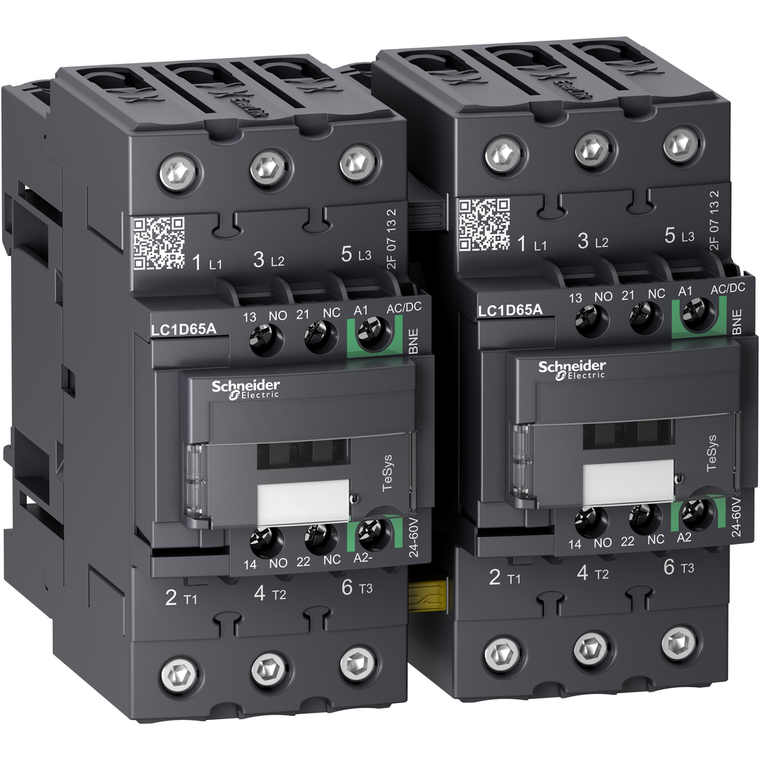

LC2D65ABNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 65A AC-3 30kW@400V, it includes a 24-60V AC/DC low consumption electronic coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D65ABNE is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 30kW@400V. It includes a 24-60V AC/DC low consumption electronic coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with an electronic coil, wide band voltage 24-60V, AC/DC compatible, low consumption. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 65A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
Additional Information
Protective Treatment:
TH IEC 60068-2-30
Non-Overlap Time:
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Power Dissipation Per Pole:
9.6 W AC-1 || 6.3 W AC-3
Average Impedance:
1.5 mOhm - Ith 80 A 50 Hz for power circuit
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Net Weight:
2.174 kg
Mounting Support:
rail || plate
Rated Breaking Capacity:
1000 A at 440 V for power circuit conforming to IEC 60947
Circularity Profile:
ENVEOLI1607010EN
Ambient Air Temperature For Storage:
-60-80°C
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947
Signaling Circuit Frequency:
25...400 Hz
Operating Altitude:
0...9842.52 ft (0...3000 m)
Interlocking Type:
mechanical
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Protective Cover:
with
Tightening Torque:
control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mm || power circuit 5 N.m EverLink BTR screw connecto
Control Circuit Type:
AC 50/60 Hz AC/DC electronic || DC AC/DC electronic
Inrush Power In Va:
15-15 VA 50/60 Hz 20°C)
Width:
119 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Weight:
2.174 kg
Hold-In Power Consumption In Va:
1-1 VA 20°C) 50/60 Hz
Auxiliary Contact Composition:
1 NO + 1 NC
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Associated Fuse Rating:
10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 125 A gG at <= 690 V coordination type 1 for power circuit || 125 A gG at <= 690 V coordination type 2 for power circuit
Maximum Operating Rate:
3600 cyc/h 60°C
Motor Power Kw:
18.5 kW at 220...230 V AC 50 Hz || 30 kW at 380...400 V AC 50 Hz || 37 kW at 415 V AC 50 Hz || 37 kW at 440 V AC 50 Hz || 37 kW at 500 V AC 50 Hz || 37 kW at 660...690 V AC 50 Hz
Contactor Application:
motor control || resistive load
Color:
Gray SE GREY 6) || Green SE GREEN 2)
[Ith] Conventional Free Air Thermal Current:
10 A (at 60°C) for Signaling circuit || 80 A (at 60°C) for power circuit
Coil Technology:
built-in bidirectional peak limiting
[Ue] Rated Operational Voltage:
power circuit 690 V AC 25...400 Hz
Device Presentation:
preassembled with reversing power busbar
Device Short Name:
LC2D
Mercury Free:
Yes
Control Circuit Voltage Limits:
<= 0.1 Uc -40-70°C drop-out AC/DC || 0.85...1.1 Uc -40-60°C operational AC || 0.8...1.1 Uc -40-60°C operational DC || 1...1.1 Uc 60-70°C operational AC/DC
Sustainable Offer Status:
Green Premium product
Product Name:
Tesys Deca green || TeSys Deca
Warranty:
18 months
Minimum Switching Voltage:
17 V for Signaling circuit
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || IEC 60335-1
Pollution Degree:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Horse Power Rating:
5 hp at 115 V AC 60 Hz for 1 phase motors || 10 hp at 230/240 V AC 60 Hz for 1 phase motors || 20 hp at 200/208 V AC 60 Hz for 3 phase motors || 20 hp at 230/240 V AC 60 Hz for 3 phase motors || 40 hp at 460/480 V AC 60 Hz for 3 phase motors || 50 hp
Pole Contact Composition:
3 NO
[Ie] Rated Operational Current:
80 A (at <60°C) at <= 440 V AC-1 for power circuit || 65 A (at <60°C) at <= 440 V AC-3 for power circuit
[Ui] Rated Insulation Voltage:
power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-1
