Schneider Electric LC2DT25P7 TeSys Deca changeover contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 230 V AC coil

Schneider Electric LC2DT25P7 TeSys Deca changeover contactor - 4P(4 NO) - AC-1 - <= 440 V 25 A - 230 V AC coil

Schneider Electric
SKU:
LC2DT25P7
$420.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

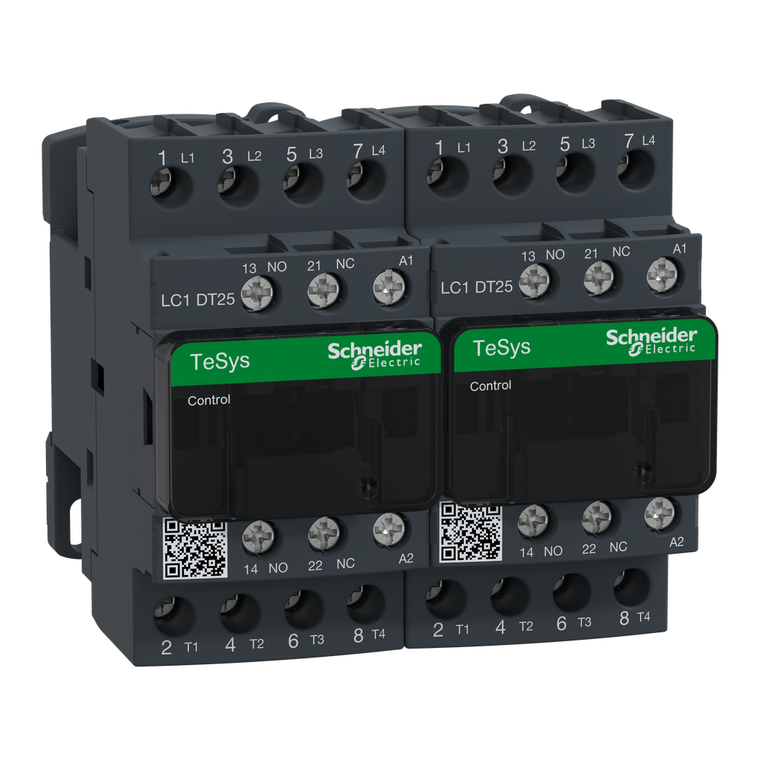

TeSys D changeover contactor, 4 poles (4NO), for non-inductive load applications up to 25A/690V AC-1. It provides 230V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired changeover power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Additional Information
Rated Breaking Capacity:
250 A at 440 V for power circuit conforming to IEC 60947
Flame Retardance:
V1 conforming to UL 94
Auxiliary Contacts Type:
mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Insulation Resistance:
> 10 MOhm for Signaling circuit
Poles Description:
4P
Inrush Power In Va:
70-70 VA 60 Hz cos phi 0.75 (at 20°C) || 70-70 VA 50 Hz cos phi 0.75 (at 20°C)
Standards:
CSA C22.2 No 60947-4-1 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
[Ui] Rated Insulation Voltage:
power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL
Warranty:
18 months
Hold-In Power Consumption In Va:
7.5-7.5 VA 60 Hz cos phi 0.3 (at 20°C) || 7-7 VA 50 Hz cos phi 0.3 (at 20°C)
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms Rated Making Capacity:
250 A at 440 V for power circuit conforming to IEC 60947 || 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1
Mechanical Robustness:
vibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor open10 Gn for 11 ms || shocks contactor closed15 Gn for 11 ms
Protective Treatment:
TH IEC 60068-2-30
Height:
85 mm
Non-Overlap Time:
1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Operating Time:
12...22 ms closing || 4...19 ms opening
Interlocking Type:
mechanical
Connections - Terminals:
power circuit screw clamp terminals 1 1-4 mm²flexible without cable end || power circuit screw clamp terminals 2 1-4 mm²flexible without cable end || power circuit screw clamp terminals 1 1-4 mm²flexible with cable end || power circuit screw clamp
[Ie] Rated Operational Current:
25 A (at <60°C) at <= 440 V AC AC-1 for power circuit
Weight:
0.73 kg
Product Name:
TeSys D || TeSys Deca
Heat Dissipation:
2-3 W 50/60 Hz
Ip Degree Of Protection:
IP20 front face IEC 60529
Electrical Durability:
0.8 Mcycles 25 A AC-1 <= 690 V
Pole Contact Composition:
4 NO
Operating Altitude:
0...9842.52 ft (0...3000 m)
Depth:
90 mm
Signaling Circuit Frequency:
25...400 Hz
Country of Origin:
France
[Uc] Control Circuit Voltage:
230 V AC 50/60 Hz
Coil Technology:
without built-in suppressor module
Overvoltage Category:
III
Pvc Free:
Yes
Minimum Switching Voltage:
17 V for Signaling circuit
Device Short Name:
LC2D
Product Or Component Type:
changeover contactor
Rohs Exemption Information:
Yes
Control Circuit Voltage Limits:
0.3...0.6 Uc -40-60°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz
Associated Fuse Rating:
10 A gG for Signaling circuit conforming to IEC 60947-5-1 || 40 A gG at <= 690 V coordination type 1 for power circuit || 25 A gG at <= 690 V coordination type 2 for power circuit
Ambient Air Temperature For Storage:
-60-80°C
Tightening Torque:
power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || power circuit 1.7 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || contro
Climatic Withstand:
IACS E10 || IEC 60947-1 Annex Q category D
Toxic Heavy Metal Free:
Yes
Range:
TeSys || TeSys Deca
Ambient Air Temperature For Operation:
-40-60°C || 60-70°C with derating
Mounting Support:
rail || plate
Utilisation Category:
AC-1
