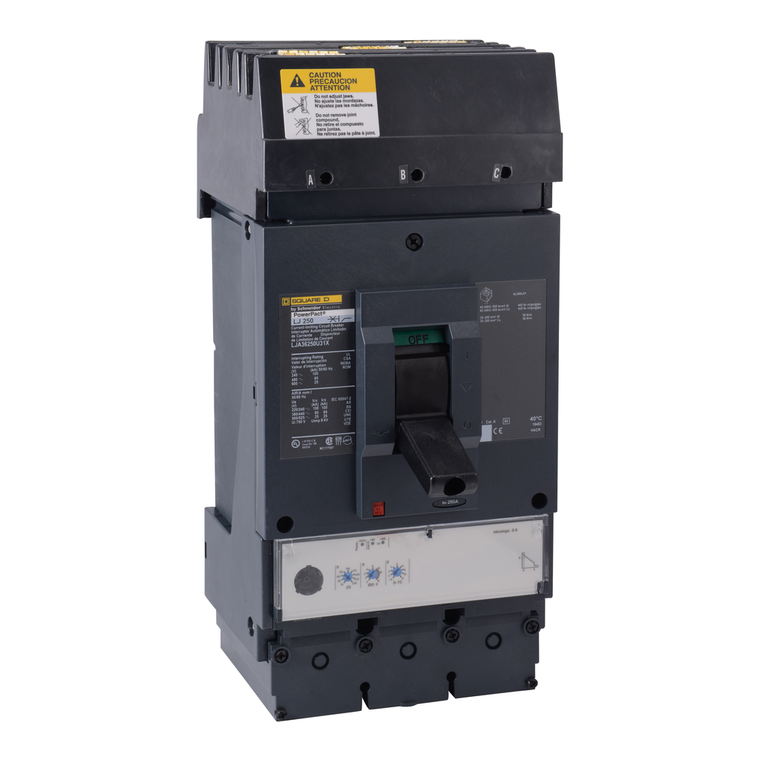

Schneider Electric LJA34250WU33X Circuit breaker, PowerPacT L, 250A, 3 pole, 480VAC, 65kA, I-Line, MicroLogic 3.3S, 80%, ABC, mission critical
Schneider Electric
$16,498.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric LJA34250WU33X Circuit breaker, PowerPacT L, 250A, 3 pole, 480VAC, 65kA, I-Line, MicroLogic 3.3S, 80%, ABC, mission critical
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 250A, 3 pole, circuit breaker has an interrupting rating of 65kA at 480VAC. This circuit breaker provides MicroLogic Standard with a 3.3S trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This breaker is a PowerPact Mission Critical; it analyzes fault current to make decisions which maximize selectivity with downstream circuit breakers. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mounting Support:
- bracket
- Suitability For Isolation:
- yes IEC 60947-2
- Rohs Exemption Information:
- Yes
- Continuous Current Rating:
- 0.8
- Environmental Disclosure:
- ENVPEP1406010EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Protection Technology:
- current limiter
- [Ue] Rated Operational Voltage:
- 480/277 V AC 50/60 Hz IEC 60947-3
- Product Name:
- PowerPact L
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Eu Rohs Directive:
- Compliant
- Mounting Height:
- 6 in
- Ambient Air Temperature For Storage:
- -50-85°C
- Local Signaling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Length:
- 31 mm
- Trip Unit Name:
- MicroLogic 3.3 S
- Weight:
- 6.2 kg
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.3 S, LSI
- Warranty:
- 18 months
- Net Weight:
- 6.2 kg
- Ambient Air Temperature For Operation:
- -25-70°C
- Wire Stripping Length:
- 31 mm
- Tightening Torque:
- 50-50 N.m 35-300 mm² (AWG 2...600 kcmil) || 50-50 N.m 35-240 mm² (AWG 2...500 kcmil)
- Device Application:
- distribution
- Network Frequency:
- 50/60 Hz
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Mercury Free:
- Yes
- Pvc Free:
- Yes
- Breaking Capacity Code:
- J
- Phase Connection:
- ABC
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Communication Interface:
- Modbus || Ethernet
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Black
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Poles Description:
- 3P
- Height:
- 340 mm
- Utilisation Category:
- category A
- Circularity Profile:
- ENVEOLI1406010EN
- Product Or Component Type:
- circuit breaker
- Pollution Degree:
- 3 IEC 60947-1
- Circuit Breaker Application:
- HACR rated
- Ip Degree Of Protection:
- front cover IP40
- Terminal Identifier:
- AL400L61K3
- Electrical Connection:
- I-Line connection, line || lugs, load
