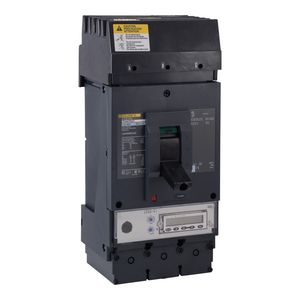

Schneider Electric LJA36400CU43X Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 5.3A, 100%, ABC

(No reviews yet) Write a Review
SKU:
LJA36400CU43X
MPN:
LJA36400CU43X
Condition:
New
Product Certifications:
UL || CSA || NOM
Circuit Breaker Application:
HACR rated
Continuous Current Rating:
1
Mercury Free:
Yes
Tightening Torque:
50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)
Sustainable Offer Status:
Green Premium product
Device Application:
distribution
Mounting Support:
bracket
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Product Name:
PowerPact L
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity Code:
J
Length:
31 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Height:
6 in
Poles Description:
3P
Eu Rohs Directive:
Compliant with Exemptions
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Trip Unit Technology:
electronic, ammeter, MicroLogic 5.3 A, LSI
Device Short Name:
L-Frame
Range:
PowerPact
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Line Rated Current:
400-400 A
Rohs Exemption Information:
Yes
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Warranty:
18 months
Width:
140 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Weight:
6.2 kg
Network Frequency:
50/60 Hz
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Environmental Disclosure:
ENVPEP2206029EN
Circularity Profile:
ENVEOLI2206029EN
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Suitability For Isolation:
yes IEC 60947-2
Height:
340 mm
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Color:
Black
Depth:
110 mm
Pollution Degree:
3 IEC 60947-1
Mounting Height:
6 in
Ambient Air Temperature For Operation:
-25-70°C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Country of Origin:
United States
Ip Degree Of Protection:
front cover IP40
Control Type:
toggle
Trip Unit Name:
MicroLogic 5.3 A
Product Or Component Type:
circuit breaker
Communication Interface:
Modbus || Ethernet
Local Signaling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
$11,715.00

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 25kA at 600VAC. This circuit breaker provides MicroLogic Ammeter with a 5.3A trip unit and an LSI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
