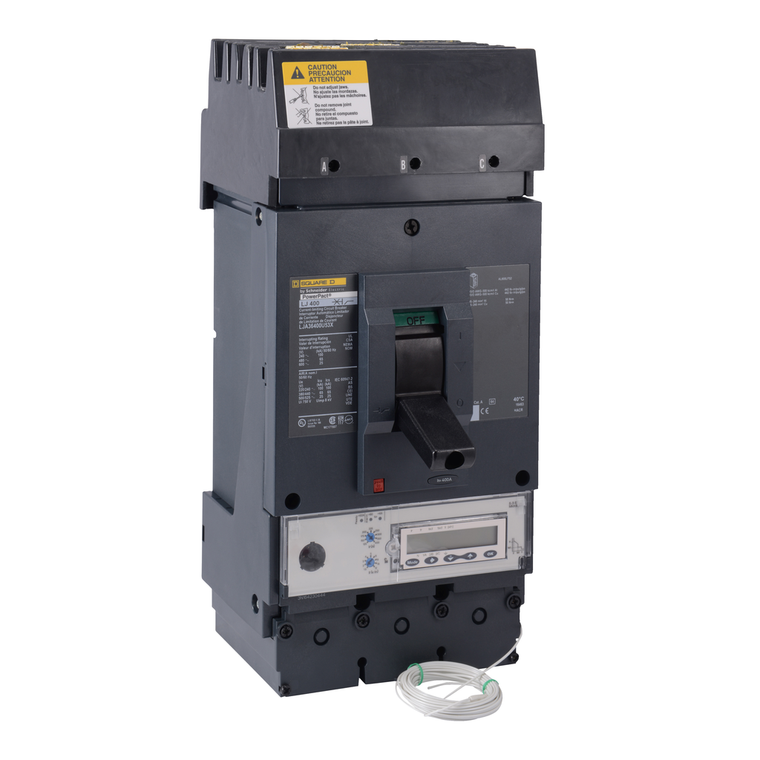

Schneider Electric LJA36400U53X Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 5.3E, 80%, ABC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJA36400U53X Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 5.3E, 80%, ABC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJA36400U53X

UPC:

MPN:

LJA36400U53X

Condition:

New

Network Frequency:

50/60 Hz

Breaking Capacity Code:

J

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Suitability For Isolation:

yes IEC 60947-2

Control Type:

toggle

Device Application:

distribution

Product Name:

PowerPact L

Ambient Air Temperature For Storage:

-50-85°C

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Warranty:

18 months

Line Rated Current:

400-400 A

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Long Time Pick-Up Adjustment Range:

0.25...1 x In

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Continuous Current Rating:

0.8

Tightening Torque:

50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Awg Gauge:

AWG 3/0...500 kcmil aluminium/copper

Height:

340 mm

Terminal Identifier:

AL600LF52K3

Product Certifications:

UL || CSA || NOM

Phase Connection:

ABC

Pvc Free:

Yes

Range:

PowerPact

Utilisation Category:

category A

Length:

31 mm

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Ip Degree Of Protection:

front cover IP40

Color:

Black

Weight:

6.2 kg

Electrical Connection:

I-Line connection, line || lugs, load

Mounting Mode:

I-Line bracket)

Pollution Degree:

3 IEC 60947-1

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Circuit Breaker Application:

HACR rated

Communication Interface:

Modbus || Ethernet

Device Short Name:

L-Frame

Environmental Disclosure:

ENVPEP2206029EN

Circularity Profile:

ENVEOLI2206029EN

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Mounting Height:

6 in

Country of Origin:

United States

Trip Unit Technology:

electronic, energy, MicroLogic 5.3 E, LSI

Product Or Component Type:

circuit breaker
