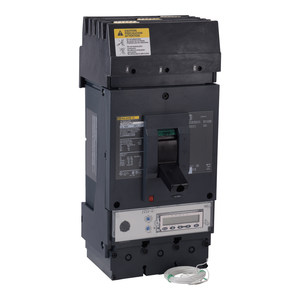

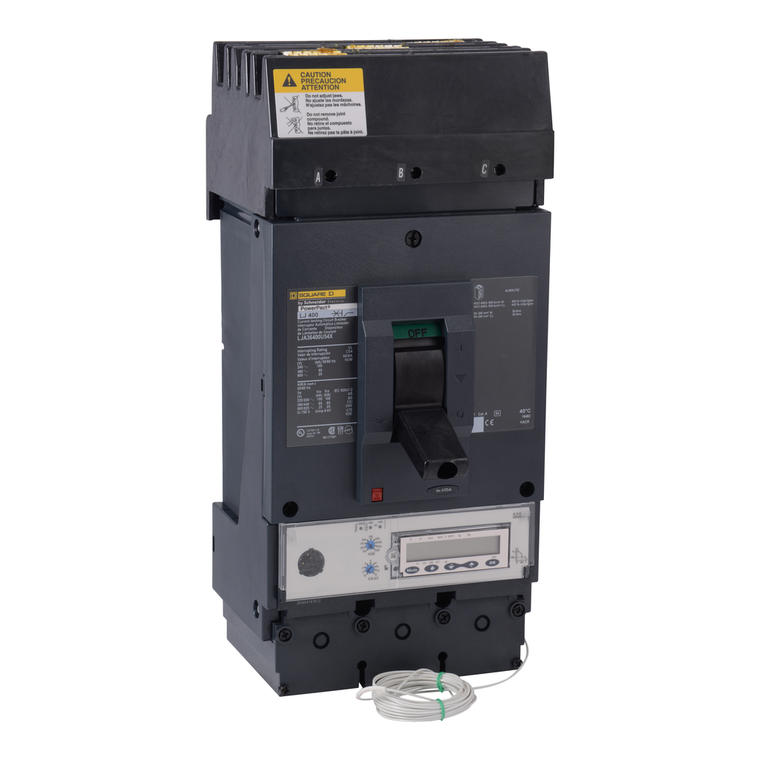

Schneider Electric LJA36400U54X Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 6.3E, 80%, ABC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJA36400U54X Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 6.3E, 80%, ABC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJA36400U54X

UPC:

MPN:

LJA36400U54X

Condition:

New

Pollution Degree:

3 IEC 60947-1

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Circularity Profile:

ENVEOLI2206029EN

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Protection Technology:

current limiter

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Network Frequency:

50/60 Hz

Control Type:

toggle

Phase Connection:

ABC

Length:

31 mm

Pvc Free:

Yes

Poles Description:

3P

Mounting Mode:

I-Line bracket)

Environmental Disclosure:

ENVPEP2206029EN

Awg Gauge:

AWG 3/0...500 kcmil aluminium/copper

Line Rated Current:

400-400 A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Short Name:

L-Frame

Net Weight:

6.2 kg

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Mounting Support:

bracket

Electrical Connection:

I-Line connection, line || lugs, load

Wire Stripping Length:

31 mm

Ambient Air Temperature For Operation:

-25-70°C

Suitability For Isolation:

yes IEC 60947-2

Product Certifications:

UL || CSA || NOM

Circuit Breaker Application:

HACR rated

Color:

Black

Range:

PowerPact

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Long Time Pick-Up Adjustment Range:

0.25...1 x In

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Trip Unit Technology:

electronic, energy, MicroLogic 6.3 E, LSIG

Sustainable Offer Status:

Green Premium product

Tightening Torque:

50-50 N.m 95-240 mm² (AWG 3/0...500 kcmil)

Device Application:

distribution

Breaking Capacity Code:

J

Ip Degree Of Protection:

front cover IP40

Mercury Free:

Yes

Continuous Current Rating:

0.8

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Product Name:

PowerPact L

Trip Unit Name:

MicroLogic 6.3 E

Terminal Identifier:

AL600LF52K3

Rohs Exemption Information:

Yes

Utilisation Category:

category A

Warranty:

18 months
