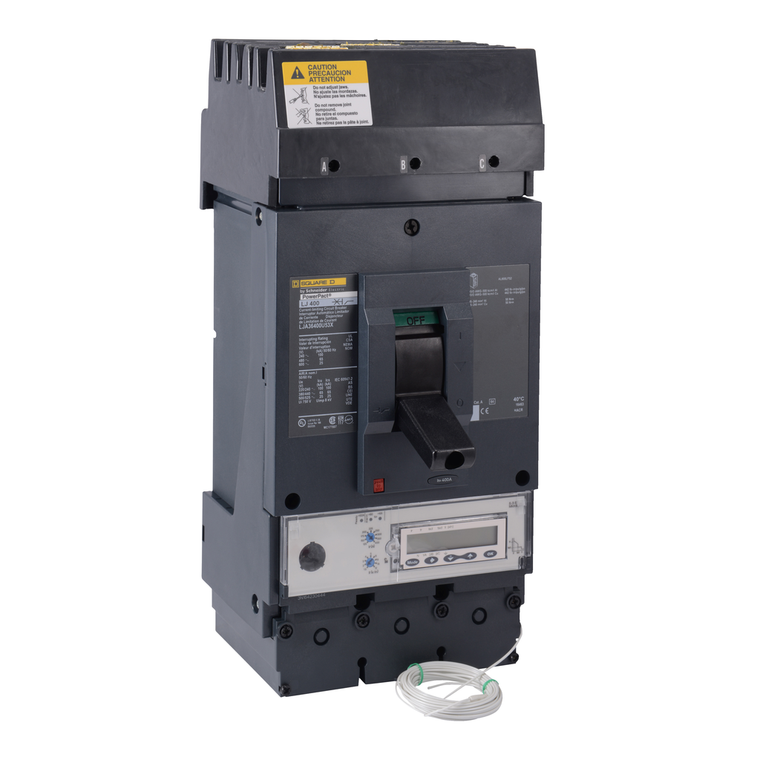

Schneider Electric LJA36600U53X Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 5.3E, 80%, ABC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJA36600U53X Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 5.3E, 80%, ABC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJA36600U53X

UPC:

MPN:

LJA36600U53X

Condition:

New

Environmental Disclosure:

ENVPEP2206029EN

Sustainable Offer Status:

Green Premium product

Protection Technology:

current limiter

Awg Gauge:

2 x AWG 2/0...500 kcmil aluminium/copper

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Ip Degree Of Protection:

front cover IP40

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Warranty:

18 months

[Ue] Rated Operational Voltage:

600 V AC 50/60 Hz IEC 60947-3

Continuous Current Rating:

0.8

Weight:

6.2 kg

Electrical Connection:

I-Line connection, line || lugs, load

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Wire Stripping Length:

31 mm

Rohs Exemption Information:

Yes

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Length:

31 mm

Suitability For Isolation:

yes IEC 60947-2

Pollution Degree:

3 IEC 60947-1

Mercury Free:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Trip Unit Technology:

electronic, energy, MicroLogic 5.3 E, LSI

Height:

340 mm

Mounting Support:

bracket

Device Application:

distribution

Breaking Capacity Code:

J

Line Rated Current:

600-600 A

Pvc Free:

Yes

Product Name:

PowerPact L

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Ambient Air Temperature For Operation:

-25-70°C

Poles Description:

3P

Circularity Profile:

ENVEOLI2206029EN

Mounting Height:

6 in

Terminal Identifier:

AL600LF52K3

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Control Type:

toggle

Utilisation Category:

category A

Tightening Torque:

50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)

Communication Interface:

Modbus || Ethernet

Device Short Name:

L-Frame

Depth:

110 mm

Phase Connection:

ABC

Color:

Black

Range:

PowerPact

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Trip Unit Name:

MicroLogic 5.3 E
