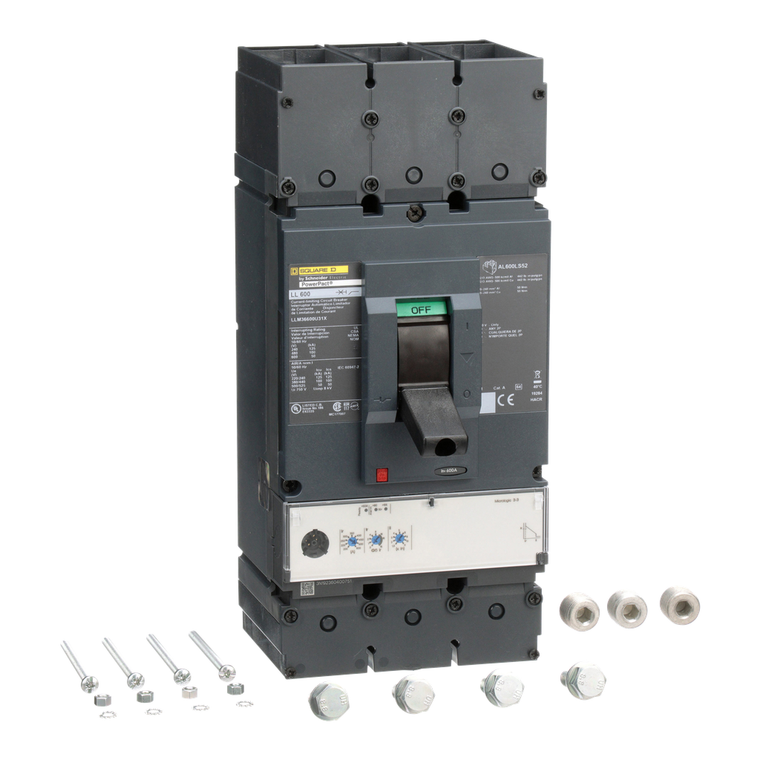

Schneider Electric LLM36600U31X Circuit breaker, PowerPacT L, 600A, 3 pole, 600VAC, 50kA, lugs, MicroLogic 3.3, 80%

(No reviews yet) Write a Review
SKU:
LLM36600U31X
MPN:
LLM36600U31X
Condition:
New
Line Rated Current:
600-600 A
Device Application:
distribution
Range:
PowerPact
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Eu Rohs Directive:
Compliant with Exemptions
Electrical Connection:
lugs, line || terminal nut, load
Circularity Profile:
ENVEOLI2206029EN
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Device Short Name:
L-Frame
Pollution Degree:
3 IEC 60947-1
Net Weight:
6.2 kg
Terminal Identifier:
AL600LS52K3
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Height:
340 mm
Environmental Disclosure:
ENVPEP2206029EN
Ambient Air Temperature For Operation:
-25-70°C
Ambient Air Temperature For Storage:
-50-85°C
Ip Degree Of Protection:
front cover IP40
Product Name:
PowerPact L
Tightening Torque:
50-50 N.m 70-240 mm² (2 x AWG 2/0...500 kcmil)
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Local Signaling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Wire Stripping Length:
31 mm || 61 mm
Mounting Mode:
unit mount lug)
Poles Description:
3P
Product Certifications:
UL || CSA || NOM
Continuous Current Rating:
0.8
Circuit Breaker Application:
HACR rated
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
electronic, standard, MicroLogic 3.3, LI
Product Or Component Type:
circuit breaker
Color:
Black
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Protection Technology:
current limiter
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Network Frequency:
50/60 Hz
Awg Gauge:
2 x AWG 2/0...500 kcmil aluminium/copper
Pvc Free:
Yes
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz IEC 60947-3
Breaking Capacity Code:
L
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Mounting Support:
lug
Country of Origin:
United States
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Length:
31 mm
Weight:
6.2 kg
$11,837.00

Description

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 600A, 3 pole, circuit breaker has an interrupting rating of 50kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has lugs on the line side and terminal nuts on the load side. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
