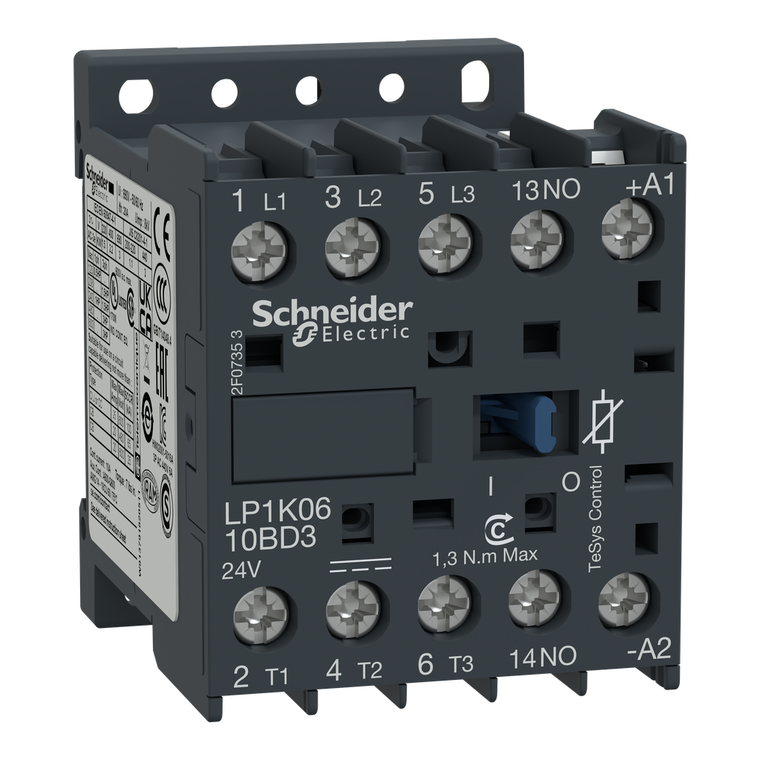

Schneider Electric LP1K0610BD3 Contactor, TeSys K, 3P, AC-3, lt or eq to 440V, 6A, 1 NO aux, 24VDC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LP1K0610BD3

UPC:

MPN:

LP1K0610BD3

Condition:

New

Product Certifications:

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Environmental Disclosure:

ENVPEP1503003EN

Product Or Component Type:

contactor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range:

TeSys

Mounting Support:

plate || rail

Circularity Profile:

ENVEOLI1503003EN

Ambient Air Temperature For Storage:

-50-80°C

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC <= 400 Hz || Signaling circuit <= 690 V AC <= 400 Hz

Coil Technology:

built-in bidirectional peak limiting diode suppressor

Mercury Free:

Yes

Operating Time:

30...40 ms coil energisation and NO closing || 10 ms coil de-energisation and NO opening

Operating Altitude:

6561.68 ft (2000 m) without derating

Heat Dissipation:

1.3-1.3 W

Country of Origin:

France

Ip Degree Of Protection:

IP2X

Pole Contact Composition:

3 NO

Mechanical Durability:

10 Mcycles

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4

[Icw] Rated Short-Time Withstand Current:

90 A 50°C - 1 s for power circuit || 85 A 50°C - 5 s for power circuit || 80 A 50°C - 10 s for power circuit || 60 A 50°C - 30 s for power circuit || 45 A 50°C - 1 min for power circuit || 40 A 50°C - 3 min for power circuit || 20 A 50°C - >= 15 min

Utilisation Category:

AC-3 || AC-3e || AC-4

Auxiliary Contacts Type:

instantaneous 1 NO

Sustainable Offer Status:

Green Premium product

Net Weight:

0.225 kg

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Contactor Application:

motor control

Tightening Torque:

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Rated Breaking Capacity:

110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conformin

Minimum Switching Voltage:

17 V for Signaling circuit

[Ith] Conventional Free Air Thermal Current:

20 A (at 60°C) for power circuit || 10 A (at 50°C) for Signaling circuit

[Uc] Control Circuit Voltage:

24 V DC

[Uimp] Rated Impulse Withstand Voltage:

8 kV

Weight:

0.225 kg

Reach Free Of Svhc:

Yes

Associated Fuse Rating:

25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for Signaling circuit conforming to IEC 60947 || 10 A gG for Signaling circuit conforming to VDE 0660

[Ie] Rated Operational Current:

6 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 6 A (at <60°C) at <= 440 V AC AC-3e for power circuit

Average Impedance:

3 mOhm - Ith 20 A 50 Hz for power circuit

Device Short Name:

LP1K

Toxic Heavy Metal Free:

Yes

Motor Power Kw:

1.5 kW 220...230 V AC 50/60 Hz AC-3 || 2.2 kW 380...415 V AC 50/60 Hz AC-3 || 3 kW 440/690 V AC 50/60 Hz AC-3 || 1.5 kW 220...230 V AC 50/60 Hz AC-3e || 2.2 kW 380...415 V AC 50/60 Hz AC-3e || 3 kW 440/690 V AC 50/60 Hz AC-3e || 1.5 kW 220...230 V AC

Control Circuit Type:

DC standard

Depth:

57 mm

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Insulation Resistance:

> 10 MOhm for Signaling circuit

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)
