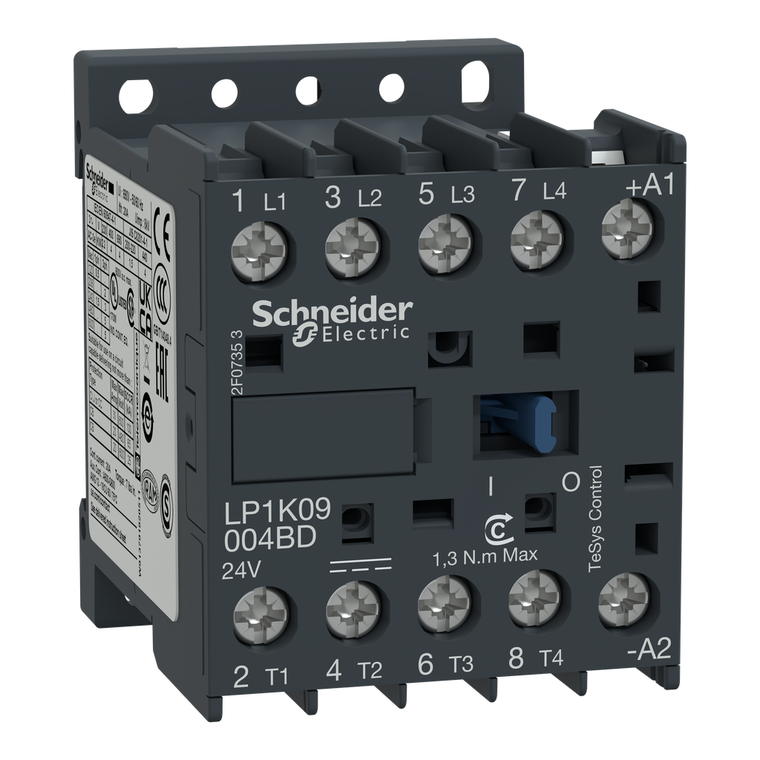

Schneider Electric LP1K09004BD Contactor, TeSys K, 4P, 4 NO, AC-1, lt or eq to 440V, 20A, 24VDC coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LP1K09004BD Contactor, TeSys K, 4P, 4 NO, AC-1, lt or eq to 440V, 20A, 24VDC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LP1K09004BD

UPC:

MPN:

LP1K09004BD

Condition:

New

Range:

TeSys

Tightening Torque:

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Average Impedance:

3 mOhm - Ith 20 A 50 Hz for power circuit

Irms Rated Making Capacity:

110 A AC for power circuit conforming to IEC 60947

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Product Or Component Type:

contactor

Device Short Name:

LP1K

[Ue] Rated Operational Voltage:

power circuit <= 690 V AC <= 400 Hz || Signaling circuit <= 690 V AC <= 400 Hz

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Compliant

Environmental Disclosure:

ENVPEP1503003EN

Overvoltage Category:

III

Control Circuit Voltage Limits:

operational: 0.8...1.15 Uc (at <50°C) || drop-out: >= 0.10 Uc (at <50°C)

Operating Altitude:

6561.68 ft (2000 m) without derating

Poles Description:

4P

Contactor Application:

resistive load

Ambient Air Temperature For Storage:

-50-80°C

Utilisation Category:

AC-1

[Uc] Control Circuit Voltage:

24 V DC

[Ie] Rated Operational Current:

20 A (at <60°C) at <= 690 V AC AC-1 for power circuit

Inrush Power In W:

3-3 W 20°C)

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI1503003EN

Pole Contact Composition:

4 NO

[Icw] Rated Short-Time Withstand Current:

90 A 50°C - 1 s for power circuit || 85 A 50°C - 5 s for power circuit || 80 A 50°C - 10 s for power circuit || 60 A 50°C - 30 s for power circuit || 45 A 50°C - 1 min for power circuit || 40 A 50°C - 3 min for power circuit || 20 A 50°C - >= 15 min

Ip Degree Of Protection:

IP2X

Net Weight:

0.225 kg

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

Electrical Durability:

0.16 Mcycles 20 A AC-1 <= 690 V

Motor Power Kw:

4 kW 690 V AC 50/60 Hz AC-4

Mercury Free:

Yes

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4

[Uimp] Rated Impulse Withstand Voltage:

8 kV

Mounting Support:

rail || plate

Rated Breaking Capacity:

110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conformin

[Ith] Conventional Free Air Thermal Current:

20 A (at 60°C) for power circuit || 10 A (at 50°C) for Signaling circuit

Sustainable Offer Status:

Green Premium product

Toxic Heavy Metal Free:

Yes

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Warranty:

18 months

Ambient Air Temperature For Operation:

-25-50°C

Connections - Terminals:

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4

Reach Free Of Svhc:

Yes

[Ui] Rated Insulation Voltage:

power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14

Depth:

57 mm

Heat Dissipation:

1.3-1.3 W
