Schneider Electric LP1K09013BD Contactor, TeSys K, 3P, AC-3, lt or eq to 440V, 9A, 1 NC aux, 24VDC coil

Schneider Electric LP1K09013BD Contactor, TeSys K, 3P, AC-3, lt or eq to 440V, 9A, 1 NC aux, 24VDC coil

Schneider Electric
SKU:
LP1K09013BD
$92.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

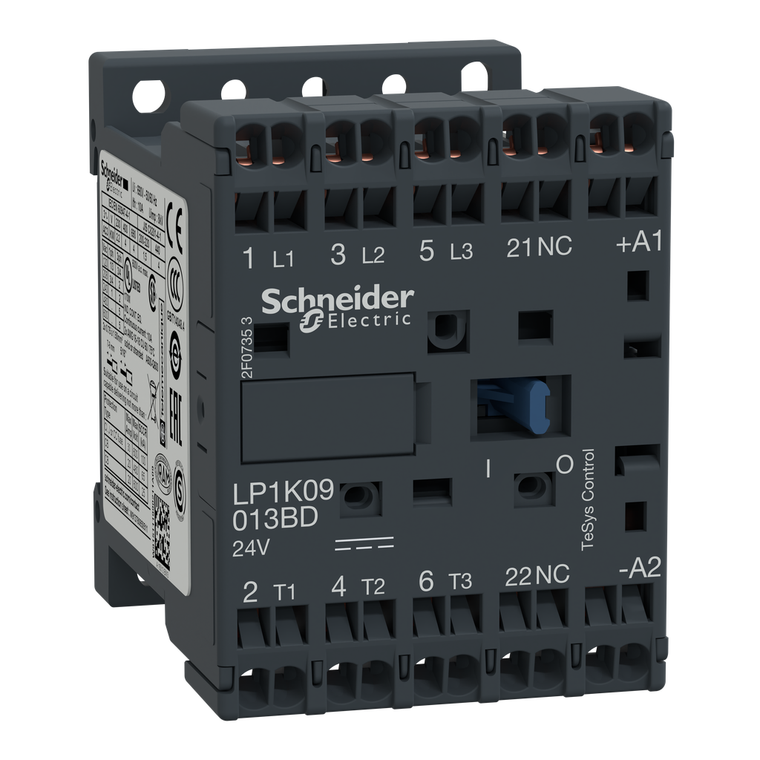

LP1K09013BD is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications 9A AC-3 4kW@400V. It provides a 24V DC coil, 1NC auxiliary contact and connections by spring terminals. LP1K09013BD is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, it provides a 24V DC coil, 1NC built-in auxiliary contact and connections by spring terminals. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Equipped with a 24V DC coil and 1NC built-in auxiliary contact for easy integration to all control systems. Model with spring terminals for fast wiring and lasting contact quality. Optimized for simple power applications. Can be added with clip-on auxiliary contact blocks with spring terminals (LA1KN.3) and clip-on suppressor modules with LED indicator (LA4K.).
Additional Information
[Ith] Conventional Free Air Thermal Current:
16 A (at 60°C) for power circuit || 10 A (at 50°C) for Signaling circuit
Hold-In Power Consumption In W:
3-3 W 20°C
Ip Degree Of Protection:
IP2X
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1503003EN
Operating Time:
30...40 ms coil energisation and NO closing || 10 ms coil de-energisation and NO opening
Electrical Durability:
1.3 Mcycles 9 A AC-3 <= 440 V || 1.3 Mcycles 9 A AC-3e <= 440 V || 0.16 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 54 A AC-4 <= 440 V
Contactor Application:
motor control || resistive load
Maximum Operating Rate:
3600 cyc/h
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Product Or Component Type:
contactor
Insulation Resistance:
> 10 MOhm for Signaling circuit
Range:
TeSys
Weight:
0.225 kg
Heat Dissipation:
1.3-1.3 W
Country of Origin:
France
Depth:
57 mm
Warranty:
18 months
Utilisation Category:
AC-3 || AC-3e || AC-1 || AC-4
Minimum Switching Voltage:
17 V for Signaling circuit
Pole Contact Composition:
3 NO
Rohs Exemption Information:
Yes
[Ie] Rated Operational Current:
9 A (at <60°C) at <= 440 V AC AC-3 for power circuit || 9 A (at <60°C) at <= 440 V AC AC-3e for power circuit || 20 A (at <60°C) at <= 690 V AC AC-1 for power circuit
Mounting Support:
plate || rail
Irms Rated Making Capacity:
110 A AC for power circuit conforming to IEC 60947 || 110 A AC for Signaling circuit conforming to IEC 60947
Control Circuit Type:
DC standard
Operating Altitude:
6561.68 ft (2000 m) without derating
Ambient Air Temperature For Operation:
-25-50°C
Associated Fuse Rating:
25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for Signaling circuit conforming to IEC 60947 || 10 A gG for Signaling circuit conforming to VDE 0660
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Overvoltage Category:
III
Auxiliary Contacts Type:
instantaneous 1 NC
[Ui] Rated Insulation Voltage:
power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-5-1 || Signaling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || Signaling circuit 600 V CSA
Device Short Name:
LP1K
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4
Control Circuit Voltage Limits:
operational: 0.8...1.15 Uc (at <50°C) || drop-out: >= 0.10 Uc (at <50°C)
Mechanical Durability:
10 Mcycles
Ambient Air Temperature For Storage:
-50-80°C
Connections - Terminals:
spring terminals 1 0.75-1.5 mm²solid || spring terminals 1 0.75-1.5 mm²flexible without cable end || spring terminals 2 0.75-1.5 mm²flexible without cable end
Average Impedance:
3 mOhm - Ith 16 A 50 Hz for power circuit
Net Weight:
0.225 kg
Product Certifications:
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Poles Description:
3P
Flame Retardance:
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
