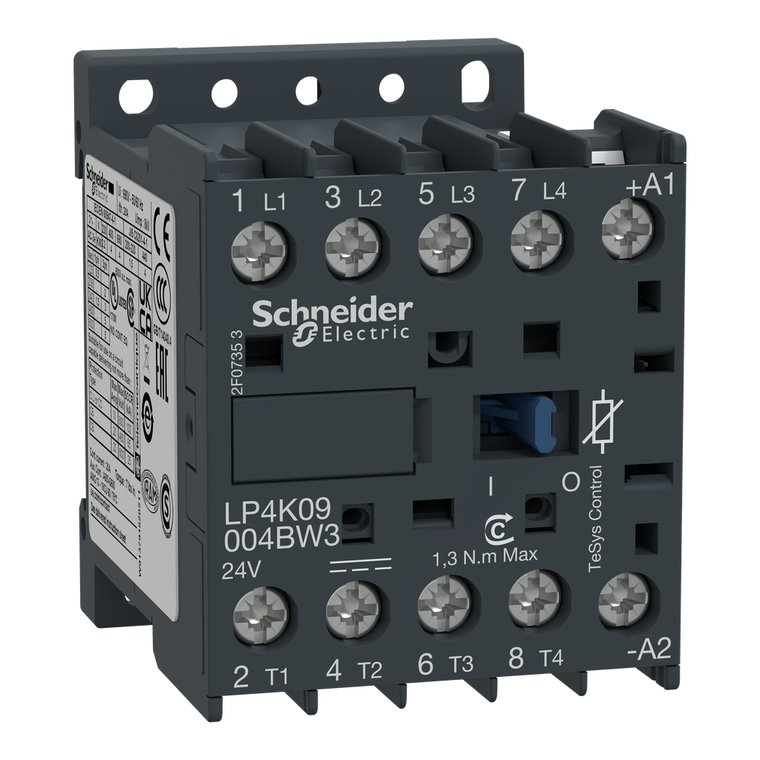

Schneider Electric LP4K09004BW3 Contactor, TeSys K, 4P, 4 NO, AC-1, lt or eq to 440V, 20A, 24VDC coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LP4K09004BW3 Contactor, TeSys K, 4P, 4 NO, AC-1, lt or eq to 440V, 20A, 24VDC coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LP4K09004BW3

UPC:

MPN:

LP4K09004BW3

Condition:

New

Operating Altitude:

6561.68 ft (2000 m) without derating

Control Circuit Voltage Limits:

operational: 0.7...1.3 Uc (at <50°C) || drop-out: >= 0.10 Uc (at <50°C)

Toxic Heavy Metal Free:

Yes

Utilisation Category:

AC-1

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Rated Breaking Capacity:

110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 70 A at 660...690 V conformin

Irms Rated Making Capacity:

110 A AC for power circuit conforming to IEC 60947

[Uc] Control Circuit Voltage:

24 V DC

Poles Description:

4P

Safety Reliability Level:

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

[Icw] Rated Short-Time Withstand Current:

90 A 50°C - 1 s for power circuit || 85 A 50°C - 5 s for power circuit || 80 A 50°C - 10 s for power circuit || 60 A 50°C - 30 s for power circuit || 45 A 50°C - 1 min for power circuit || 40 A 50°C - 3 min for power circuit || 20 A 50°C - >= 15 min

Circularity Profile:

ENVEOLI1503003EN

Eu Rohs Directive:

Compliant

Country of Origin:

Indonesia

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Control Circuit Type:

DC wide range

Net Weight:

0.235 kg

Rohs Exemption Information:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

45 mm

Overvoltage Category:

III

Depth:

57 mm

Sustainable Packaging:

Yes

Heat Dissipation:

1.8-1.8 W

Ambient Air Temperature For Operation:

-25-50°C

[Uimp] Rated Impulse Withstand Voltage:

8 kV

Reach Free Of Svhc:

Yes

Ambient Air Temperature For Storage:

-50-80°C

Warranty:

18 months

Product Certifications:

CB Scheme || CCC || UL || CSA || EAC || CE || UKCA

Product Or Component Type:

contactor

Sustainable Offer Status:

Green Premium product

Range:

TeSys

[Ui] Rated Insulation Voltage:

power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA C22.2 No 14

[Ith] Conventional Free Air Thermal Current:

20 A (at 60°C) for power circuit || 10 A (at 50°C) for Signaling circuit

Maximum Operating Rate:

3600 cyc/h

Electrical Durability:

0.16 Mcycles 20 A AC-1 <= 690 V

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4

Tightening Torque:

0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Mounting Support:

plate || rail

Connections - Terminals:

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2.5 mm²flexible with cable end || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 2 0.75-4

Hold-In Power Consumption In W:

1.8-1.8 W 20°C

Weight:

0.235 kg

Contactor Application:

resistive load

Mercury Free:

Yes

Associated Fuse Rating:

25 A gG at <= 440 V for power circuit || 25 A aM for power circuit
