Schneider Electric LP5K0601BW3 Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NC, 24VDC coil

Schneider Electric LP5K0601BW3 Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NC, 24VDC coil

Schneider Electric
SKU:
LP5K0601BW3
$202.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

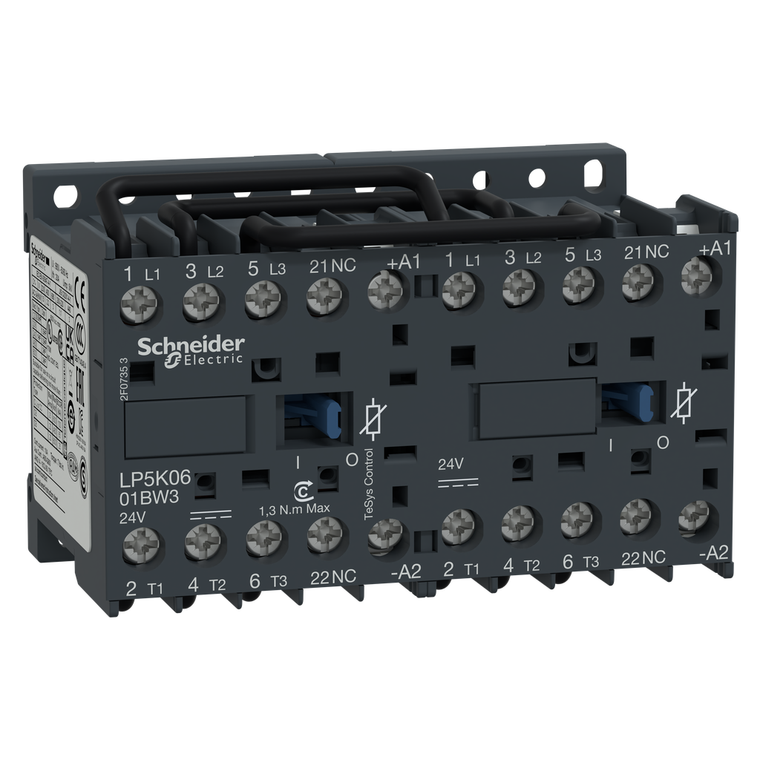

TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Device Short Name:
LP5K
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable Offer Status:
Green Premium product
Range:
TeSys
[Ith] Conventional Free Air Thermal Current:
20 A (at 50°C) for power circuit || 10 A (at 50°C) for Signaling circuit
Depth:
57 mm
Inrush Power In W:
1.8-1.8 W 20°C)
[Ie] Rated Operational Current:
6 A at <= 440 V AC AC-3 for power circuit || 6 A at <= 440 V AC AC-3e for power circuit
Interlocking Type:
mechanical
Control Circuit Voltage Limits:
operational: 0.7...1.30 Uc (at <50°C) || drop-out: 0.1...0.7 Uc (at <50°C)
Pole Contact Composition:
3 NO
[Ue] Rated Operational Voltage:
power circuit 690 V AC 50/60 Hz || Signaling circuit <= 690 V AC 50/60 Hz
[Ui] Rated Insulation Voltage:
power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-5-1 || Signaling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || Signaling circuit 600 V CSA
Rohs Exemption Information:
Yes
Mechanical Robustness:
shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068
Device Presentation:
preassembled with reversing power busbar
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Poles Description:
3P
Motor Power Kw:
1.5 kW 220...230 V AC 50/60 Hz || 2.2 kW 380...415 V AC 50/60 Hz || 3 kW 440 V AC 50/60 Hz || 3 kW 480 V AC 50/60 Hz || 3 kW 500...600 V AC 50/60 Hz || 3 kW 660...690 V AC 50/60 Hz
Rated Breaking Capacity:
110 A at 415 V conforming to IEC 60947 || 110 A at 440 V conforming to IEC 60947 || 80 A at 500 V conforming to IEC 60947 || 110 A at 220...230 V conforming to IEC 60947 || 110 A at 380...400 V conforming to IEC 60947 || 70 A at 660...690 V conformin
Eu Rohs Directive:
Compliant
Insulation Resistance:
> 10 MOhm for Signaling circuit
Mechanical Durability:
5 Mcycles
Hold-In Power Consumption In W:
1.8-1.8 W 20°C
Maximum Operating Rate:
3600 cyc/h
Operating Time:
10...20 ms coil de-energisation and NO opening || 30...40 ms coil energisation and NO closing
Control Circuit Type:
DC low consumption
Tightening Torque:
0.8-1.3 N.m screw clamp terminals Philips No 2 || 0.8-1.3 N.m screw clamp terminals flat Ø 6 mm || 0.8-1.3 N.m screw clamp terminals pozidriv No 2
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
[Uc] Control Circuit Voltage:
24 V DC
Overvoltage Category:
III
Electrical Durability:
1.3 Mcycles 6 A AC-3 <= 440 V || 1.3 Mcycles 6 A AC-3e <= 440 V || 0.05 Mcycles 36 A AC-4 <= 440 V
Auxiliary Contacts Type:
instantaneous 1 NC
Mercury Free:
Yes
Average Impedance:
3 mOhm - Ith 20 A 50 Hz for power circuit
Environmental Disclosure:
ENVPEP1503003EN
Ambient Air Temperature For Operation:
-25-50°C
Reach Free Of Svhc:
Yes
Height:
58 mm
Device Application:
control
Irms Rated Making Capacity:
110 A AC for power circuit conforming to NF C 63-110 || 110 A AC for power circuit conforming to IEC 60947 || 110 A AC for Signaling circuit conforming to IEC 60947
Protective Treatment:
TC IEC 60068 || TC DIN 50016
Product Or Component Type:
reversing contactor
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Contactor Application:
motor control
Country of Origin:
United States
Warranty:
18 months
