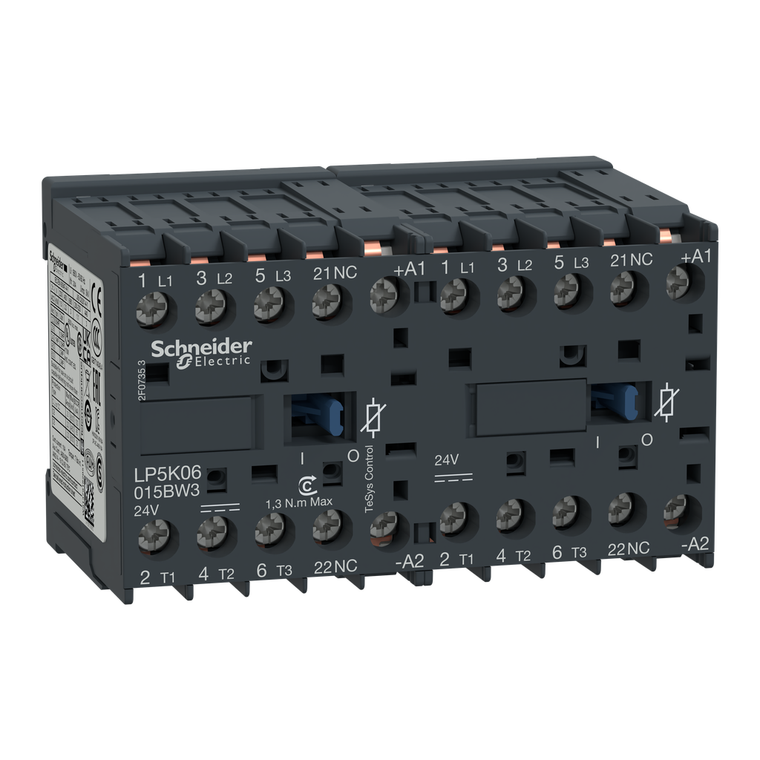

Schneider Electric LP5K12015BW3 Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 12 A, 1 NC, 24VDC coil

Schneider Electric LP5K12015BW3 Reversing contactor, TeSys K, 3P, AC-3, lt or eq to 440V 12 A, 1 NC, 24VDC coil

Schneider Electric
SKU:
LP5K12015BW3
$274.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys K reversing contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3 (5.5kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NC built-in auxiliary contacts, connection by solder pins for printed circuit boards. For operating rates until 600 cycles/hour in AC-3 and environments until 50°C, it procures reliability and durability to standard applications. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Additional Information
Insulation Resistance:
> 10 MOhm for Signaling circuit
Average Impedance:
3 mOhm - Ith 20 A 50 Hz for power circuit
Safety Reliability Level:
B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Maximum Operating Rate:
3600 cyc/h
Overvoltage Category:
III
Poles Description:
3P
Product Name:
TeSys K
Utilisation Category:
AC-3 || AC-1 || AC-4 || AC-3e
Circularity Profile:
ENVEOLI1503003EN
Ambient Air Temperature For Operation:
-25-50°C
Mounting Support:
rail || plate
Connections - Terminals:
solder pins 0.035 mm)
Operating Altitude:
6561.68 ft (2000 m) without derating
Reach Free Of Svhc:
Yes
[Ui] Rated Insulation Voltage:
power circuit 600 V UL 508 || power circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-4-1 || Signaling circuit 690 V IEC 60947-5-1 || Signaling circuit 600 V UL 508 || power circuit 600 V CSA C22.2 No 14 || Signaling circuit 600 V CSA
Auxiliary Contacts Type:
instantaneous 1 NC
Minimum Switching Current:
5 mA for Signaling circuit
Flame Retardance:
V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
Standards:
EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
Net Weight:
0.49 kg
[Uc] Control Circuit Voltage:
24 V DC
Product Certifications:
CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
Weight:
0.49 kg
Inrush Power In W:
1.8-1.8 W 20°C)
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Auxiliary Contact Composition:
1 NC
Control Circuit Voltage Limits:
operational: 0.7...1.30 Uc (at <50°C) || drop-out: 0.1...0.7 Uc (at <50°C)
Mechanical Durability:
5 Mcycles
[Uimp] Rated Impulse Withstand Voltage:
8 kV
Width:
90 mm
Environmental Disclosure:
ENVPEP1503003EN
Associated Fuse Rating:
25 A gG at <= 440 V for power circuit || 25 A aM for power circuit || 10 A gG for Signaling circuit conforming to IEC 60947 || 10 A gG for Signaling circuit conforming to VDE 0660
[Ie] Rated Operational Current:
20 A (at <50°C) at <= 440 V AC AC-1 for power circuit || 16 A (at <70°C) at 690 V AC AC-1 for power circuit || 12 A at <= 440 V AC AC-3 for power circuit || 12 A at <= 440 V AC AC-3e for power circuit
Coil Technology:
built-in bidirectional peak limiting diode suppressor
[Ith] Conventional Free Air Thermal Current:
20 A (at 50°C) for power circuit || 10 A (at 50°C) for Signaling circuit
Irms Rated Making Capacity:
110 A AC for Signaling circuit conforming to IEC 60947 || 144 A AC for power circuit conforming to NF C 63-110 || 144 A AC for power circuit conforming to IEC 60947
Ip Degree Of Protection:
IP20 VDE 0106
Depth:
57 mm
Mechanical Robustness:
shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27 || shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27 || vibrations contactor closed4 Gn, 5...300 Hz IEC 60068-2-6 || vibrations contactor opened2 Gn, 5...300 Hz IEC 60068
Non Overlap Distance:
0.5 mm
Country of Origin:
United States
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ambient Air Temperature For Storage:
-50-80°C
[Ue] Rated Operational Voltage:
power circuit 690 V AC 50/60 Hz || Signaling circuit <= 690 V AC 50/60 Hz
Electrical Durability:
1.3 Mcycles 12 A AC-3 <= 440 V || 1.3 Mcycles 12 A AC-3e <= 440 V || 0.3 Mcycles 20 A AC-1 <= 690 V || 0.02 Mcycles 72 A AC-4 <= 440 V
Reach Regulation:
Free of Substances of Very High Concern above the threshold
