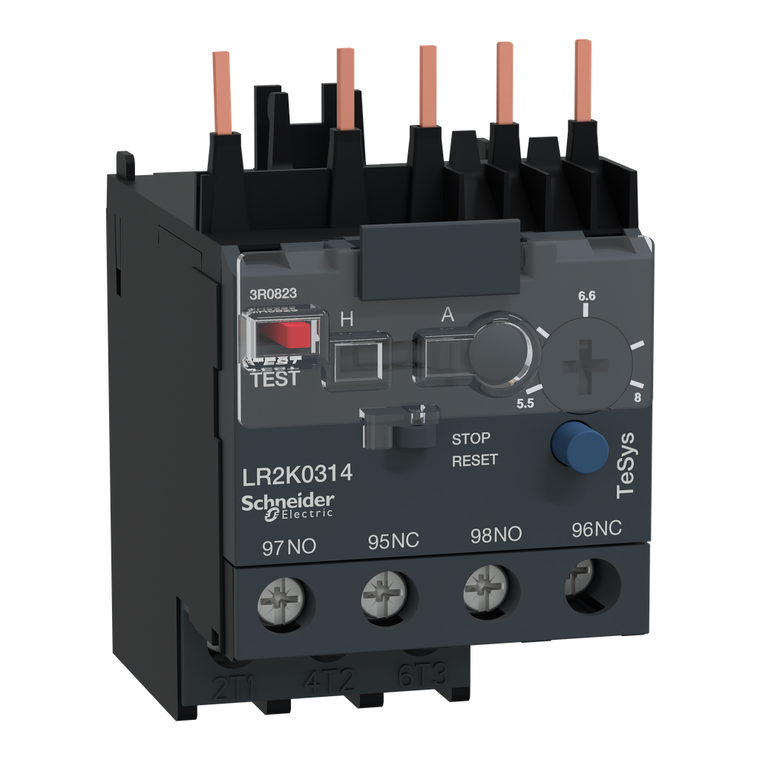

Schneider Electric LR2K0314 Differential thermal overload relays, TeSys K, 5.5 to 8 A, class 10A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LR2K0314 Differential thermal overload relays, TeSys K, 5.5 to 8 A, class 10A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LR2K0314

UPC:

MPN:

LR2K0314

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Thermal Protection Adjustment Range:

5.5-8 A

Protective Treatment:

TC IEC 60068 || TC DIN 50016

Net Weight:

0.145 kg

Power Dissipation Per Pole:

2 W

Rohs Exemption Information:

Yes

Control Type:

Red push-button trip test function || Blue push-button stop and manual reset || selector switch manual or automatic reset

Mounting Support:

under contactor || plate, with specific accessories || rail, with specific accessories

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Relay Application:

motor protection

Auxiliary Contact Composition:

1 NO + 1 NC

Product Name:

TeSys LRK

Fire Resistance:

850°C IEC 60695-2-1

Thermal Overload Class:

class 10A IEC 60947-4-1

[Uimp] Rated Impulse Withstand Voltage:

6 kV

Flame Retardance:

V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102

Circularity Profile:

ENVEOLI2211018

Sustainable Offer Status:

Green Premium product

Device Short Name:

LR2K

Depth:

65 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Network Frequency:

<= 400 Hz

Ip Degree Of Protection:

IP2X conforming to IEC 60529

[Ue] Rated Operational Voltage:

<= 690 V power circuit || 690 V AC AC-15 Signaling circuit || 250 V DC DC-13 Signaling circuit

Weight:

0.145 kg

Operating Altitude:

6561.68 ft (2000 m) without derating

[Ith] Conventional Free Air Thermal Current:

6 A Signaling circuit

Warranty:

18 months

Product Certifications:

UL || CSA || UKCA

Country of Origin:

France

Associated Fuse Rating:

6 A gG for Signaling circuit conforming to VDE 0660 || 6 A gG for Signaling circuit conforming to IEC 60947

Phase Failure Sensitivity:

yes IEC 60947-4-1

[Ui] Rated Insulation Voltage:

power circuit 690 V BS 4941 || power circuit 690 V IEC 60947 || power circuit 750 V VDE 0110 group C || power circuit 600 V CSA C22.2 No 14

Ambient Air Temperature For Storage:

-40-70°C

Mercury Free:

Yes

Tightening Torque:

1.3 N.m screw clamp terminals Philips No 2 || 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2

Local Signaling:

trip indicator Yellow)

Connections - Terminals:

screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible without cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-2

Standards:

VDE 0660 || NF C 63-650 || IEC 60947 || BS 4941

Mechanical Robustness:

shocks NO contact10 Gn for 11 ms IEC 60068-2-27 || shocks NC contact10 Gn for 11 ms IEC 60068-2-27 || vibrations NO contact2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations NC contact2 Gn, 5...300 Hz IEC 60068-2-6

Network Type:

DC || AC

Product Or Component Type:

differential thermal overload relay

Range:

TeSys

Ambient Air Temperature For Operation:

-20-55°C without derating IEC 60947 || -30-60°C with derating IEC 60947

Environmental Disclosure:

ENVPEP2211018

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold
