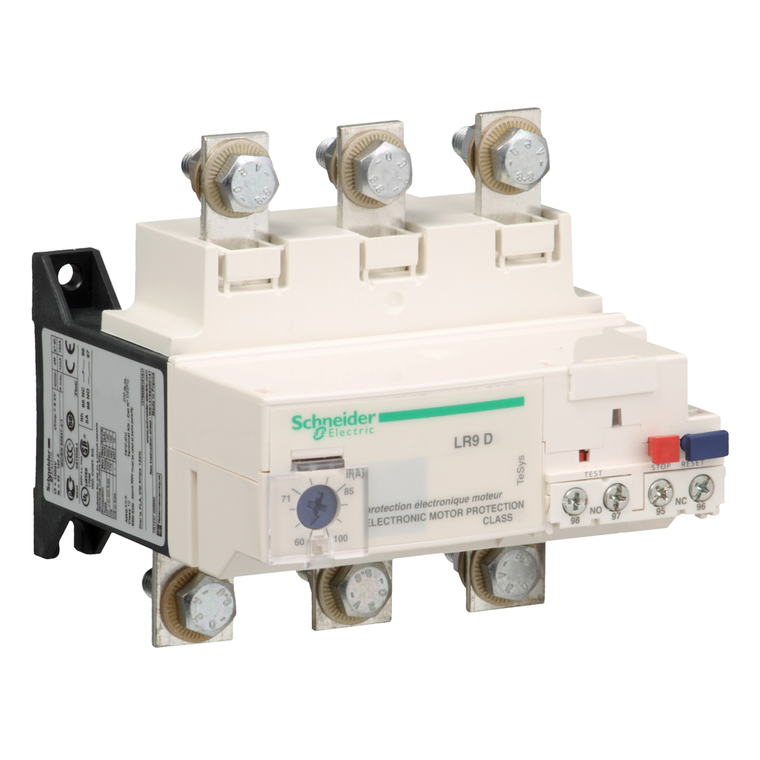

Schneider Electric LR9D5569 thermal overload relays, TeSys Deca, 90...150A, class 20

Schneider Electric LR9D5569 thermal overload relays, TeSys Deca, 90...150A, class 20

Schneider Electric
SKU:
LR9D5569
$298.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
LR9D5569 is a TeSys LR9D electronic overload relay from Schneider Electric to be used with a TeSys D contactor. With a thermal range 90-150A, a tripping class 20 and phase unbalance protection, it protects motors 55 to 75kW@400V. LR9D5569 is a TeSys LR9D electronic overload relay from Schneider Electric to be combined with a TeSys D contactor. With a thermal setting range 90-150A, a tripping class 20 and phase unbalance detection, it protects motors 55 to 75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection, electronic type, with phase unbalance protection (differential), self powered (no external power supply needed). To be combined with Tesys LC1D115-D150 contactors. Light and compact, 120mm wide. Manual control with test & reset buttons, manual / automatic reset selector. High accuracy, temperature compensated to keep a precise tripping over the ambient temperature range. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. 90% reduction in energy dissipation compared to a thermal overload relay.
Additional Information
Dielectric Strength:
1.89 kV 50 Hz IEC 60947-1
Environmental Disclosure:
ENVPEP2212018
Mercury Free:
Yes
Width:
115 mm
Ambient Air Temperature For Storage:
-60-70°C
[Ith] Conventional Free Air Thermal Current:
5 A Signaling circuit
[Ue] Rated Operational Voltage:
690 V AC 0...400 Hz power circuit IEC 60947-4-1
Device Short Name:
LR9D
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5
Range:
TeSys
Operating Altitude:
<= 6561.68 ft (2000 m) without derating
Mounting Support:
under contactor || rail
Associated Fuse Rating:
4 A gG for Signaling circuit || 4 A BS for Signaling circuit
Eu Rohs Directive:
Compliant with Exemptions
Signaling Function:
alarm
Product Or Component Type:
electronic thermal overload relay
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Relay Application:
motor protection
Tightening Torque:
alarm circuit 0.45 N.m screw clamp terminals || power circuit 18 N.m bars M8 || control circuit 1.2 N.m screw clamp terminals
Product Name:
TeSys LRD || TeSys Deca
Tripping Threshold:
1.05 +/- 0.06 In alarm IEC 60947-4-1 || 1.12 +/- 0.06 In de-energisation IEC 60947-4-1
Thermal Overload Class:
class 20 IEC 60947-4-1
Connections - Terminals:
power circuit bars || control circuit screw clamp terminals 1 0.5-1.5 mm² flexible without cable end || control circuit screw clamp terminals 2 0.5-1.5 mm² flexible without cable end || alarm circuit screw clamp terminals 1 0.5-1.5 mm² flexible wi
Rohs Exemption Information:
Yes
Supply Voltage Limits:
17-32 V
Warranty:
18 months
Climatic Withstand:
IACS E10
Thermal Protection Adjustment Range:
90-150 A
[Us] Rated Supply Voltage:
24 V DC
Product Certifications:
UL || CSA || CCC || UKCA
Product Compatibility:
NSX circuit breaker || LC1D115 || LC1D150
Auxiliary Contact Composition:
1 NO + 1 NC
Maximum Voltage Drop:
<2.5 V closed state
Circularity Profile:
ENVEOLI2212018
Depth:
125 mm
Network Frequency:
50-60 Hz
Country of Origin:
United States
Weight:
0.885 kg
Pvc Free:
Yes
Control Type:
Red push-button stop || Blue push-button reset
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Robustness:
vibrations2 Gn, 5...300 Hz IEC 60068-2-6 || shocks13 Gn for 11 ms IEC 60068-2-7
Temperature Compensation:
-20-60°C
Ambient Air Temperature For Operation:
-20-60°C without derating IEC 60947-4-1
Net Weight:
0.885 kg
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Switching Capacity In Ma:
0...150 mA
