Schneider Electric LRD076 TeSys Deca thermal overload relays - 1.6...2.5 A - class 10A

Schneider Electric LRD076 TeSys Deca thermal overload relays - 1.6...2.5 A - class 10A

Schneider Electric
SKU:
LRD076
$101.07
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

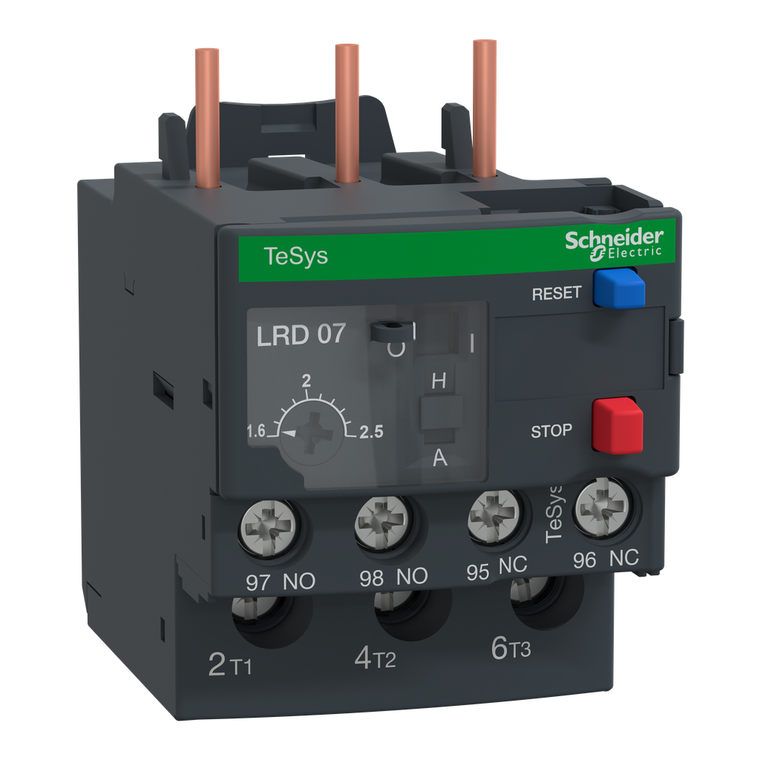

TeSys LRD thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping class 10A, for protection of 3-phase motors 0.75kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Additional Information
Climatic Withstand:
IACS E10
Connection Pitch:
14.5 mm
Reach Free Of Svhc:
Yes
Weight:
0.124 kg
Permissible Current:
3 A 120 V AC-15 Signaling circuit || 0.22 A 125 V DC-13 Signaling circuit
Phase Failure Sensitivity:
tripping current 130 % of Ir on two phase, the last one at 0
[Ith] Conventional Free Air Thermal Current:
5 A Signaling circuit
Product Compatibility:
LC1D18 || LC1D38 || LC1D12 || LC1D32 || LC1D09 || LC1D25
Connections - Terminals:
control circuit screw clamp terminals 2 1-2.5 mm² flexible without cable end || control circuit screw clamp terminals 2 1-2.5 mm² flexible with cable end || control circuit screw clamp terminals 2 1-2.5 mm² solid without cable end || power circuit
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-60-70°C
Circularity Profile:
ENVEOLI0804005_V1
Thermal Overload Class:
class 10A IEC 60947-4-1
Tripping Threshold:
1.14 +/- 0.06 Ir IEC 60947-4-1
Mounting Support:
plate, with specific accessories || rail, with specific accessories || under contactor
Auxiliary Contact Composition:
1 NO + 1 NC
Ambient Air Temperature For Operation:
-20-60°C without derating IEC 60947-4-1
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Range:
TeSys || TeSys Deca
Control Type:
Red push-button stop || Blue push-button reset
Ip Degree Of Protection:
IP20 conforming to IEC 60529
Relay Application:
motor protection
Net Weight:
0.124 kg
Mechanical Robustness:
vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7
Country of Origin:
France
Environmental Disclosure:
ENVPEP080405EN
Dielectric Strength:
1.89 kV 50 Hz IEC 60947-1
[Ue] Rated Operational Voltage:
690 V AC 0...400 Hz power circuit IEC 60947-4-1
Network Frequency:
0...400 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
70 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
differential thermal overload relay
Network Type:
DC || AC
Temperature Compensation:
-20-60°C
Standards:
EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495
Device Short Name:
LRD
Associated Fuse Rating:
4 A gG for Signaling circuit || 4 A BS for Signaling circuit
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Name:
TeSys LRD || TeSys Deca
Product Certifications:
IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA
Thermal Protection Adjustment Range:
1.6-2.5 A
[Ui] Rated Insulation Voltage:
power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1
