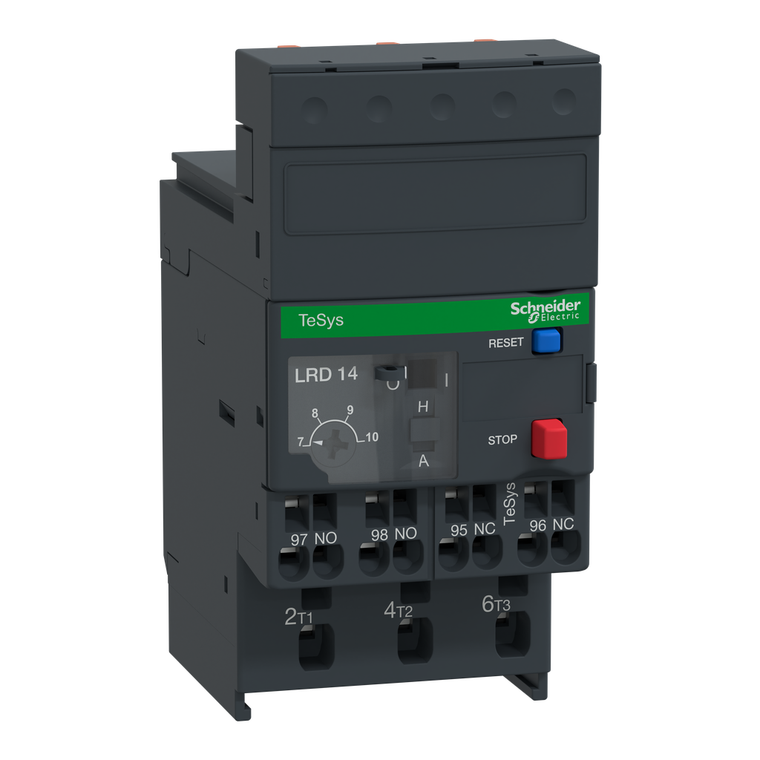

Schneider Electric LRD143 TeSys Deca thermal overload relays - 7...10 A - class 10A

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LRD143 TeSys Deca thermal overload relays - 7...10 A - class 10A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LRD143

UPC:

MPN:

LRD143

Condition:

New

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Relay Application:

motor protection

Weight:

0.14 kg

Product Compatibility:

LC1D12 || LC1D09 || LC1D18 || LC1D25 || LC1D38 || LC1D32

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Country of Origin:

France

[Ui] Rated Insulation Voltage:

power circuit 600 V CSA || power circuit 600 V UL || power circuit 690 V IEC 60947-4-1

Thermal Overload Class:

class 10A IEC 60947-4-1

Product Or Component Type:

differential thermal overload relay

Network Type:

AC || DC

Climatic Withstand:

IACS E10

Connections - Terminals:

control circuit spring terminals 1 1-2.5 mm² solid without cable end || control circuit spring terminals 1 1-2.5 mm² flexible without cable end || power circuit spring terminals 1 1.5-4 mm² flexible without cable end || power circuit spring termin

Control Type:

Red push-button stop || Blue push-button reset

Reach Free Of Svhc:

Yes

Tripping Threshold:

1.14 +/- 0.06 Ir IEC 60947-4-1

Eu Rohs Directive:

Compliant with Exemptions

Auxiliary Contact Composition:

1 NO + 1 NC

[Ue] Rated Operational Voltage:

690 V AC 0...400 Hz power circuit IEC 60947-4-1

Thermal Protection Adjustment Range:

7-10 A

Permissible Current:

3 A 120 V AC-15 Signaling circuit || 0.22 A 125 V DC-13 Signaling circuit

Network Frequency:

0...400 Hz

Phase Failure Sensitivity:

tripping current 130 % of Ir on two phase, the last one at 0

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Operation:

-20-60°C without derating IEC 60947-4-1

Ambient Air Temperature For Storage:

-60-70°C

Mechanical Robustness:

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Temperature Compensation:

-20-60°C

Dielectric Strength:

1.89 kV 50 Hz IEC 60947-1

Circularity Profile:

ENVEOLI0804005_V1

Associated Fuse Rating:

4 A gG for Signaling circuit || 4 A BS for Signaling circuit

Environmental Disclosure:

ENVPEP080405EN

Flame Retardance:

V1 conforming to UL 94

[Ith] Conventional Free Air Thermal Current:

5 A Signaling circuit

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sustainable Packaging:

Yes

Range:

TeSys || TeSys Deca

Product Certifications:

IEC || UL || CSA || CCC || EAC || BV || RINA || DNV-GL || LROS (Lloyds register of shipping) || ATEX INERIS || UKCA

Mounting Support:

plate, with specific accessories || rail, with specific accessories || under contactor

Standards:

EN/IEC 60947-4-1 || EN/IEC 60947-5-1 || UL 60947-4-1 || UL 60947-5-1 || CSA C22.2 No 60947-4-1 || CSA C22.2 No 60947-5-1 || GB/T 14048.4 || GB/T 14048.5 || EN 50495

Product Name:

TeSys LRD || TeSys Deca

Warranty:

18 months

Device Short Name:

LRD

[Uimp] Rated Impulse Withstand Voltage:

6 kV

Net Weight:

0.14 kg
