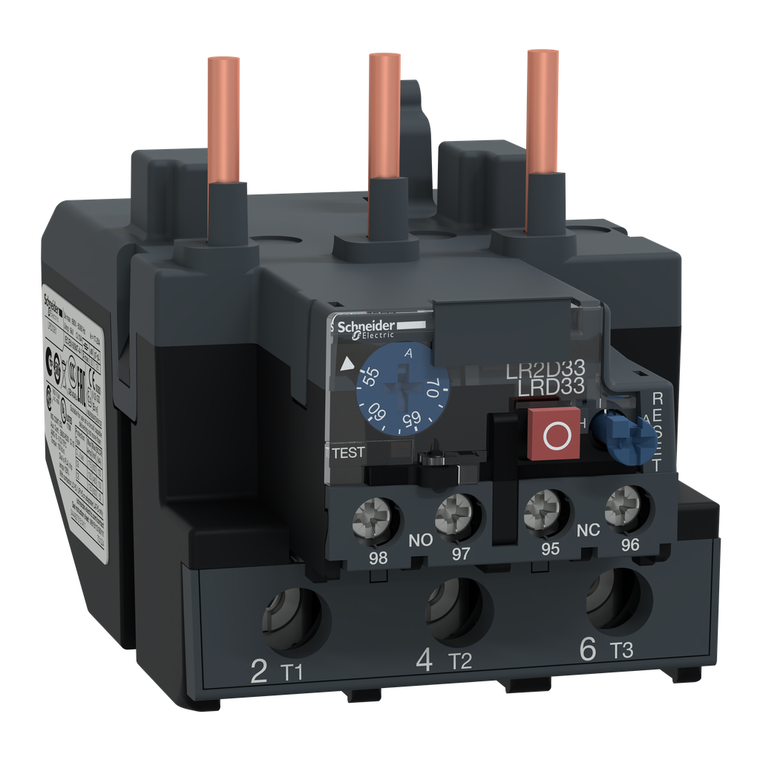

Schneider Electric LRD3361 TeSys Deca, thermal overload relay, 55 to 70 A, class 10A, for LC1D80 and LC1D95

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LRD3361 TeSys Deca, thermal overload relay, 55 to 70 A, class 10A, for LC1D80 and LC1D95

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LRD3361

UPC:

MPN:

LRD3361

Condition:

New

Toxic Heavy Metal Free:

Yes

Product Name:

TeSys LRD || TeSys Deca

Climatic Withstand:

IACS E10

Tightening Torque:

control circuit 1.7 N.m screw clamp terminals || power circuit 9 N.m screw clamp terminals

Depth:

115 mm

Range:

TeSys

Product Certifications:

IEC || UL || CSA || CCC || EAC || ATEX INERIS || UKCA

Thermal Overload Class:

class 10A IEC 60947-4-1

Country of Origin:

France

Relay Application:

motor protection

[Ue] Rated Operational Voltage:

1000 V AC 0...400 Hz power circuit IEC 60947-4-1

Flame Retardance:

V1 conforming to UL 94

Net Weight:

0.51 kg

Mounting Support:

plate, with specific accessories || rail, with specific accessories || under contactor

Warranty:

18 months

Associated Fuse Rating:

4 A gG for Signaling circuit || 4 A BS for Signaling circuit

Eu Rohs Directive:

Compliant

[Ith] Conventional Free Air Thermal Current:

5 A Signaling circuit

Connections - Terminals:

power circuit screw clamp terminals 1 4-35 mm² flexible without cable end || power circuit screw clamp terminals 1 4-35 mm² flexible with cable end || power circuit screw clamp terminals 1 4-35 mm² solid without cable end || control circuit screw

Product Or Component Type:

differential thermal overload relay

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ip Degree Of Protection:

IP20 conforming to IEC 60529

Tripping Threshold:

1.14 +/- 0.06 Ir IEC 60947-4-1

Dielectric Strength:

2.2 kV 50 Hz IEC 60947-1

Device Short Name:

LRD

Circularity Profile:

ENVEOLI0804005_V1

Mechanical Robustness:

vibrations6 Gn IEC 60068-2-6 || shocks15 Gn for 11 ms IEC 60068-2-7

Ambient Air Temperature For Storage:

-60-70°C

Product Compatibility:

LC1D95 || LC1D80

Thermal Protection Adjustment Range:

55-70 A

[Ui] Rated Insulation Voltage:

power circuit 1000 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL

Control Type:

Red push-button stop || Blue push-button reset

Rohs Exemption Information:

Yes

Permissible Current:

0.72 A 500 V AC-15 Signaling circuit || 0.06 A 440 V DC-13 Signaling circuit

Ambient Air Temperature For Operation:

-20-60°C without derating IEC 60947-4-1

Auxiliary Contact Composition:

1 NO + 1 NC

Phase Failure Sensitivity:

tripping current 130 % of Ir on two phase, the last one at 0

Weight:

0.51 kg

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Network Type:

DC || AC

Network Frequency:

0...400 Hz

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1
