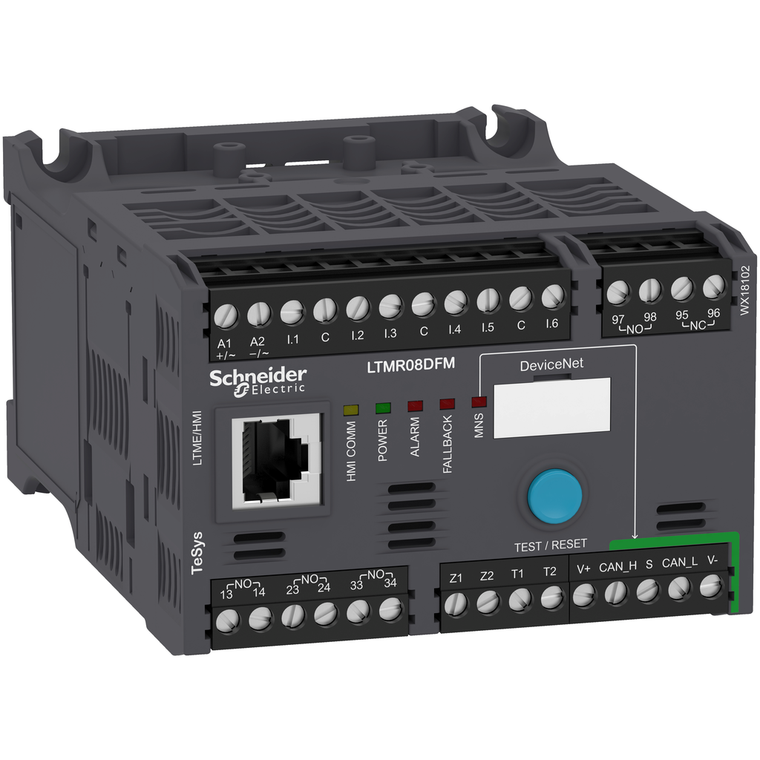

Schneider Electric LTMR08DFM Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC

Schneider Electric LTMR08DFM Motor controller, TeSys T, Motor Management, DeviceNet, 6 logic inputs, 3 relay logic outputs, 0.4 to 8A, 100 to 240VAC

Schneider Electric
SKU:
LTMR08DFM
$750.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
TeSys T is a motor management system that provides full motor monitoring, control, and protection when used with short circuit protection and a contactor. TeSys T manages most critical processes while reducing downtime and increasing productivity. TeSys T is a flexible system that integrates seamlessly into your automation system through five major communication protocols. TeSys T predicts what will happen in the process, as it accurately monitors current, voltage, and power over a wide range. This controller is the central component in the motor management system. The module manages the basic functions of the motor management system. It manages the measurement of 3 phase current via integral current transformers from 0.4 to 100 A or up to 810 A by external current transformers. It also measures ground current with internal or external ground sensors, motor temperature and the inputs and outputs for the various motor control modes, detected fault management and other functions. DeviceNet protocol is used by this controller. This module has 6 discrete logic inputs, 3 relay logic outputs and a relay output for detected fault signaling overload relay. The current range of this controller is 0.4 to 8 amperes. 120 to 240 VAC is used to power this controller. Controller has the following certifications: UL, CSA NOM, ATEX, BV, EAC, RINA, LROS, DNV, ABS, GL, KERI, RMRoS, C-Tick and CCC.
Additional Information
Range:
TeSys
Pvc Free:
Yes
Net Weight:
0.53 kg
Product Or Component Type:
motor controller
Operating Altitude:
<= 6561.68 ft (2000 m) without derating
Mercury Free:
Yes
Contacts Type And Composition:
1 NO + 1 NC fault signal || 3 NO
Communication Port Protocol:
DeviceNet
Product Name:
TeSys T
Supply Voltage Limits:
93.5-264 V AC
Halogen Content Performance:
Halogen free plastic parts product
Rohs Exemption Information:
Yes
Mechanical Robustness:
vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27
Protective Treatment:
12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
Standards:
UL 508 || IACS E10 || CSA C22.2 No 14 || IEC 60947-4-1 || EN 60947-4-1
Protection Type:
thermal overload protection || phase failure || overload || load fluctuation || power factor variation || overload (long time) || earth-leakage protection || reverse polarity protection || thermal protection || phase unbalance || locked rotor
Device Short Name:
LTMR
Warranty:
18 months
Circularity Profile:
ENVEOLI100411EN_V2
Product Certifications:
KERI || LROS (Lloyds register of shipping) || CSA || ATEX || UL || DNV || C-tick || RMRoS || CCC || RINA || ABS || EAC || GL || NOM || BV
Web Services:
web server
Electromagnetic Compatibility:
electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 ||
[Uimp] Rated Impulse Withstand Voltage:
4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1
Maximum Operating Frequency:
2 Hz
Network And Machine Diagnosis Type:
running hours counter/operating time || starting current and time || fault recording || trip history information || trip context information || phase fault and earth fault trip counters || motor control command recording || event recording || waiting
Tightening Torque:
control circuit 0.5-0.6 N.m flat 3 mm
Environmental Disclosure:
ENVPEP060308EN_V2
Connection Pitch:
5.08 mm
Associated Fuse Rating:
4 A gG output || 0.5 A gG control circuit
Measurement Current:
0.4-8 A
Country of Origin:
China
[Us] Rated Supply Voltage:
100...240 V AC 50/60 Hz
Overvoltage Category:
III
Weight:
0.53 kg
Ambient Air Temperature For Operation:
-20-60°C
Logic Input Number:
6
Compatibility Code:
LTMR
Bus Type:
DeviceNet ISO 1198 1...64 125...500 kbit/s, terminal block 4 twisted shielded pairs cable
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
3
Sustainable Offer Status:
Green Premium product
Fire Resistance:
650°C EN/IEC 60695-2-12 || 960°C UL 94
Load Current:
5 A 250 V AC logic output || 5 A 30 V DC logic output
[Ui] Rated Insulation Voltage:
690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
Permissible Power:
480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)
Eu Rohs Directive:
Compliant with Exemptions
