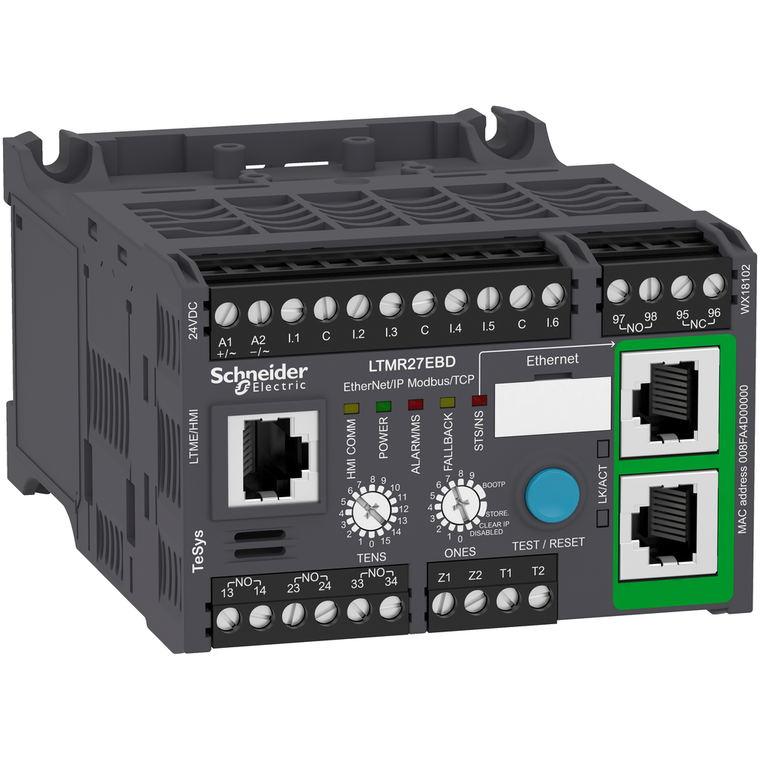

Schneider Electric LTMR27EBD Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6inputs, 3logic outputs, 1.35A to 27A, 24VDC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LTMR27EBD Motor Management, TeSys T, motor controller, Ethernet/IP, Modbus/TCP, 6inputs, 3logic outputs, 1.35A to 27A, 24VDC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LTMR27EBD

UPC:

MPN:

LTMR27EBD

Condition:

New

Overvoltage Category:

III

Country of Origin:

China

Protective Treatment:

12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-40-80°C

Ip Degree Of Protection:

IP20

Operating Altitude:

<= 6561.68 ft (2000 m) without derating

Bus Type:

Ethernet IEEE 802.3 0...159 10...100 Mbit/s, RJ45 2 shielded twisted pairs

Protection Type:

earth-leakage protection || phase failure || thermal protection || overload || overload (long time) || reverse polarity protection || power factor variation || phase unbalance || thermal overload protection || load fluctuation || locked rotor

[Us] Rated Supply Voltage:

24 V DC

Mercury Free:

Yes

Connection Pitch:

5.08 mm

Network And Machine Diagnosis Type:

remaining operating time before overload tripping || running hours counter/operating time || waiting time after overload tripping || phase fault and earth fault trip counters || fault recording || trip context information || trip history information

Communication Port Protocol:

Modbus TCP/EtherNet/IP

Standards:

CSA C22.2 No 14 || EN 60947-4-1 || IACS E10 || IEC 60947-4-1 || UL 508

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Fire Resistance:

650°C EN/IEC 60695-2-12 || 960°C UL 94

Input Current:

7 mA

Current State 0 Guaranteed:

logic input < 5 V <= 15 mA 5 ms

[Ui] Rated Insulation Voltage:

690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI100411EN_V2

Logic Input Number:

6

Electromagnetic Compatibility:

electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay ou

Supply Voltage Limits:

20.4-26.24 V DC

Product Or Component Type:

motor controller

Measurement Current:

1.35-27 A

Short-Circuit Withstand:

100 kA conforming to EN/IEC 60947-4-1

Current State 1 Guaranteed:

logic input < 15 V 2...15 mA 15 ms

Web Services:

web server

Warranty:

18 months

Compatibility Code:

LTMR

Range:

TeSys

Measurement Accuracy:

5...15 % earth fault current internal measurement || 1 % voltage 100...830 V) || 3 % power factor || 5 % earth fault current external measurement || +/- 30 min/year internal clock || 0,02 Temperature || 1 % current || 5 % active and reactive power

Net Weight:

0.53 kg

Permissible Power:

480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)

Maximum Operating Rate:

1800 cyc/h

Ambient Air Temperature For Operation:

-20-60°C

Product Certifications:

CCC || BV || KERI || C-tick || GL || ATEX || RINA || CSA || EAC || UL || NOM || DNV || LROS (Lloyds register of shipping) || ABS || RMRoS

Environmental Disclosure:

ENVPEP060308EN_V2

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Contacts Type And Composition:

1 NO + 1 NC fault signal || 3 NO

Maximum Operating Frequency:

2 Hz

Halogen Content Performance:

Halogen free plastic parts product

Metering Type:

phase current I1, I2, I3 RMS || average current Iavg || imbalance current || earth-fault current || temperature
