Schneider Electric LV429392 Shunt trip release MX, ComPacT NSX, 48VDC, screwless spring terminal connections
Schneider Electric
$789.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

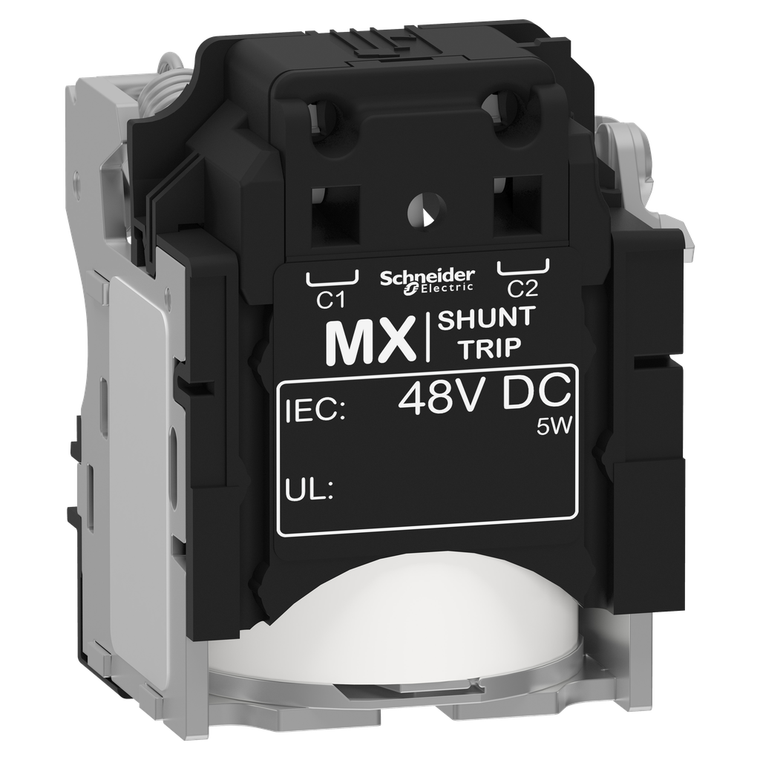

Schneider Electric LV429392 Shunt trip release MX, ComPacT NSX, 48VDC, screwless spring terminal connections
This is a MX shunt trip release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 48 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage Un rises above 70% of its rated voltage Un. It complies with IEC 60947-2 standard. This shunt trip is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
- Wire Stripping Length:
- 7 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Range Compatibility:
- ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard
- Response Time:
- 50 ms
- Auxiliary Connection Terminal:
- spring 0.5-1.5 mm² AWG 20...AWG 16)
- Mercury Free:
- Yes
- [Uc] Control Circuit Voltage:
- 48 V DC
- Device Application:
- control
- Threshold Tripping Voltage:
- 0.7...1.1 x Un opening
- Pvc Free:
- Yes
- Control Signal Type:
- impulse || maintained
- Supply Inrush Power:
- 10 W
- Device Short Name:
- MX
- Environmental Disclosure:
- ENVPEP2304020EN
- Impulse Duration:
- >= 20 ms
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- voltage release
- Circularity Profile:
- N/A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Country of Origin:
- Poland
- Voltage Release Type:
- opening coil || shunt trip release
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Range:
- ComPacT
- Rohs Exemption Information:
- Yes
- Range Of Product:
- ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC P
