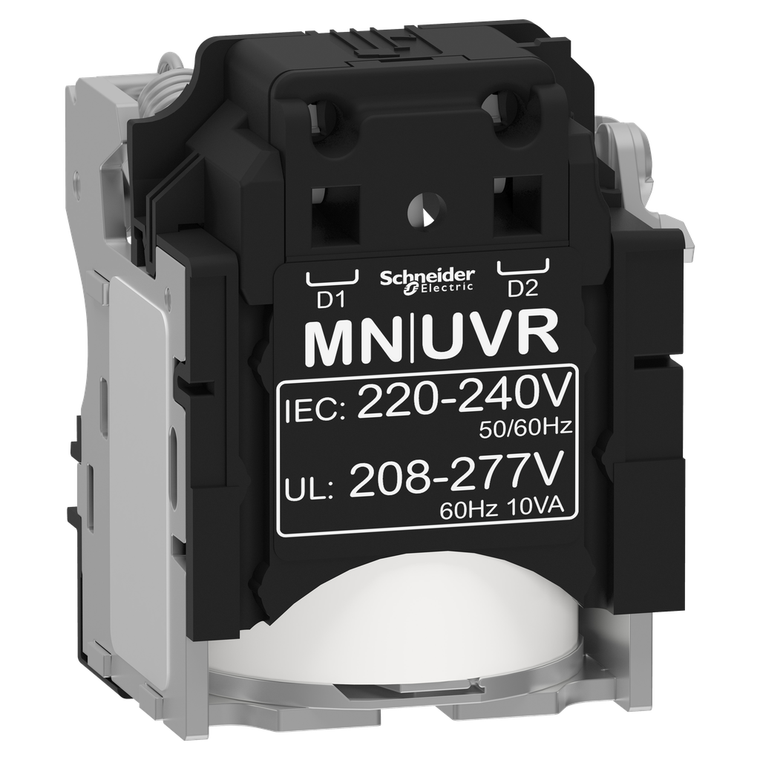

Schneider Electric LV429407 Undervoltage release MN, ComPacT NSX, 220/240VAC 50/60Hz, 208/277VAC 60Hz, screwless spring terminal connections

(No reviews yet) Write a Review
SKU:
LV429407
MPN:
LV429407
Condition:
New
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2304023EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Mercury Free:
Yes
Device Short Name:
MN
Supply Holding Power:
5 VA
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Range:
ComPacT
Threshold Tripping Voltage:
0.35...0.7 x Un opening || 0.85 x Un closing
Rohs Exemption Information:
Yes
Auxiliary Connection Terminal:
spring 0.5-1.5 mm² AWG 20...AWG 16)
Supply Inrush Power:
10 VA
Range Compatibility:
ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard
Response Time:
50 ms
Country of Origin:
Poland
Product Or Component Type:
voltage release
Device Application:
control
Warranty:
18 months
Voltage Release Type:
opening coil || undervoltage release
Sustainable Offer Status:
Green Premium product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC P
Circularity Profile:
N/A
Wire Stripping Length:
7 mm
[Uc] Control Circuit Voltage:
220...240 V AC 50/60 Hz || 208...277 V AC 60 Hz
Eu Rohs Directive:
Compliant with Exemptions
$789.00

Description

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 220 to 240 VAC 50/60 Hz, or 208 to 277 VAC 60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
