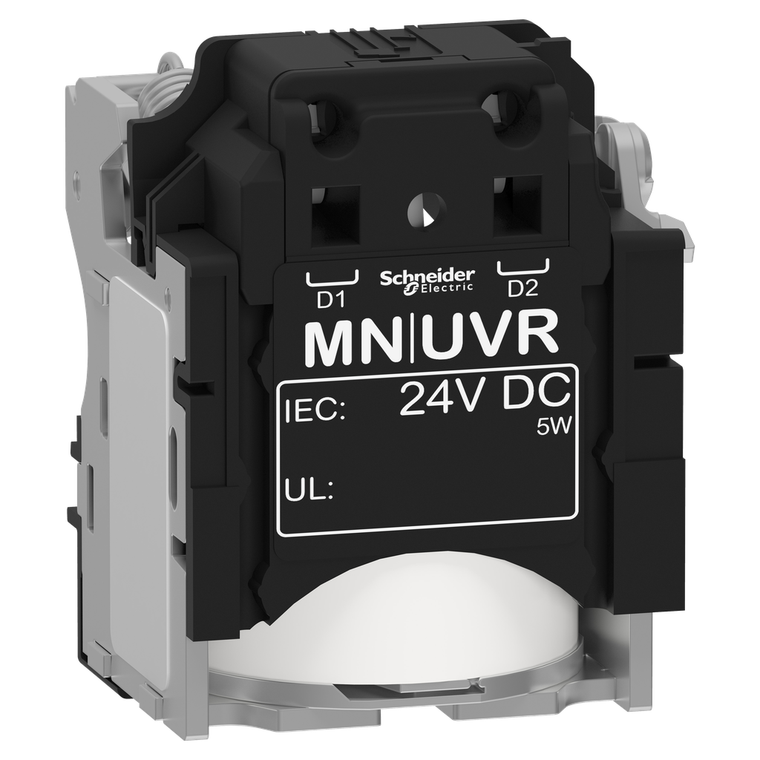

Schneider Electric LV429410 Undervoltage release MN, ComPacT NSX, rated voltage 24VDC, screwless spring terminal connections

(No reviews yet) Write a Review
SKU:
LV429410
MPN:
LV429410
Condition:
New
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Country of Origin:
France
Product Or Component Type:
voltage release
Response Time:
50 ms
Auxiliary Connection Terminal:
spring 0.5-1.5 mm² AWG 20...AWG 16)
Threshold Tripping Voltage:
0.35...0.7 x Un opening || 0.85 x Un closing
[Uc] Control Circuit Voltage:
24 V DC
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Voltage Release Type:
opening coil || undervoltage release
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Pvc Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC P
Warranty:
18 months
Supply Inrush Power:
10 W
Eu Rohs Directive:
Compliant with Exemptions
Range:
ComPacT
Device Short Name:
MN
Range Compatibility:
ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard
Supply Holding Power:
5 W
Wire Stripping Length:
7 mm
Device Application:
control
Environmental Disclosure:
ENVPEP2304023EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
$526.00

Description

This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 24 VDC. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
