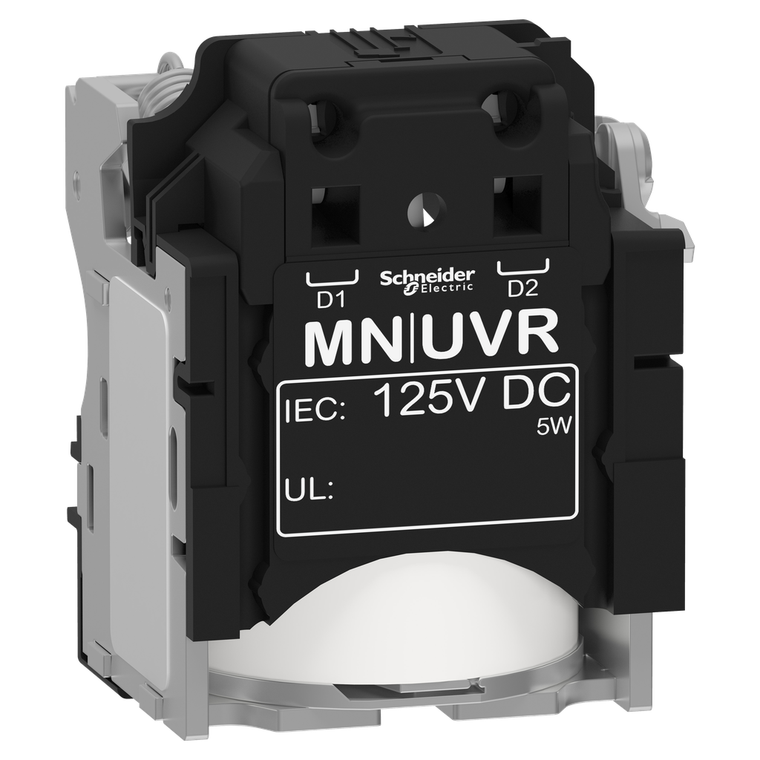

Schneider Electric LV429413 Undervoltage release MN, ComPacT NSX, rated voltage 125VDC, screwless spring terminal connections

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LV429413 Undervoltage release MN, ComPacT NSX, rated voltage 125VDC, screwless spring terminal connections

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LV429413

UPC:

MPN:

LV429413

Condition:

New

Warranty:

18 months

Product Or Component Type:

voltage release

Device Short Name:

MN

Pvc Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Response Time:

50 ms

Voltage Release Type:

opening coil || undervoltage release

Supply Holding Power:

5 W

Mercury Free:

Yes

Threshold Tripping Voltage:

0.35...0.7 x Un opening || 0.85 x Un closing

Country of Origin:

Poland

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP2304023EN

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

control

Eu Rohs Directive:

Compliant with Exemptions

Range Of Product:

ComPact NSX100...250 || ComPacT NSX100...250 new generation || ComPact NSX400...630 || ComPacT NSX400...630 new generation || ComPact NSX100...250 DC || ComPacT NSX100...250 DC new generation || ComPact NSX100...250 DC PV || ComPacT NSX100...250 DC P

Supply Inrush Power:

10 W

Rohs Exemption Information:

Yes

[Uc] Control Circuit Voltage:

125 V DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Auxiliary Connection Terminal:

spring 0.5-1.5 mm² AWG 20...AWG 16)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range Compatibility:

ComPacT new generation ComPacT NSX new generation || ComPacT new generation ComPacT NSX DC new generation || ComPact ComPact NSX || ComPact ComPact NSX DC || EasyPact EasyPact CVS || PowerPact PowerPact Multistandard

Range:

ComPacT

Circularity Profile:

N/A

Wire Stripping Length:

7 mm
