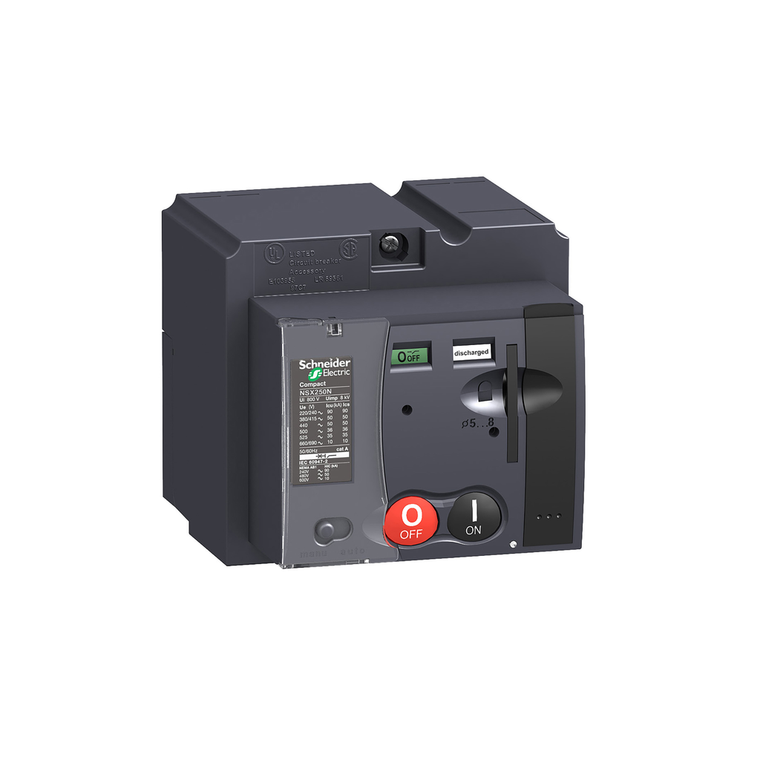

Schneider Electric LV431540 Standard motor mechanism module MT250, ComPacT NSX250, 110/130VAC 50/60Hz

Schneider Electric LV431540 Standard motor mechanism module MT250, ComPacT NSX250, 110/130VAC 50/60Hz

Schneider Electric
SKU:
LV431540
$4,426.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This is a standard motor mechanism for Compact NSX 250 and PowerPact Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 110VAC to 130VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Additional Information
Response Time:
< 700 ms open || < 80 ms closed
Country of Origin:
France
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Uc] Control Circuit Voltage:
110...130 V AC 50/60 Hz
Warranty:
18 months
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2308038EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Application:
automatic spring charging
Rohs Exemption Information:
Yes
Control Type:
standard
Maximum Power Consumption In Va:
500 VA closing || 500 VA opening
Mounting Mode:
fixed
Circularity Profile:
ENVEOLI2308038EN
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Provided Equipment:
SDE adaptor
Device Short Name:
MT250
Maximum Operating Frequency:
4 per minute
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
Control Signal Type:
impulse || maintained
Line Rated Current:
250 A
Product Or Component Type:
motor mechanism
Sustainable Offer Status:
Green Premium product
Locking Options Description:
padlocking in OFF position || 1 to 3 padlocks Ø 5 to Ø 8
Range Compatibility:
ComPacT new generation NSX250 || ComPacT new generation NSX250 DC
