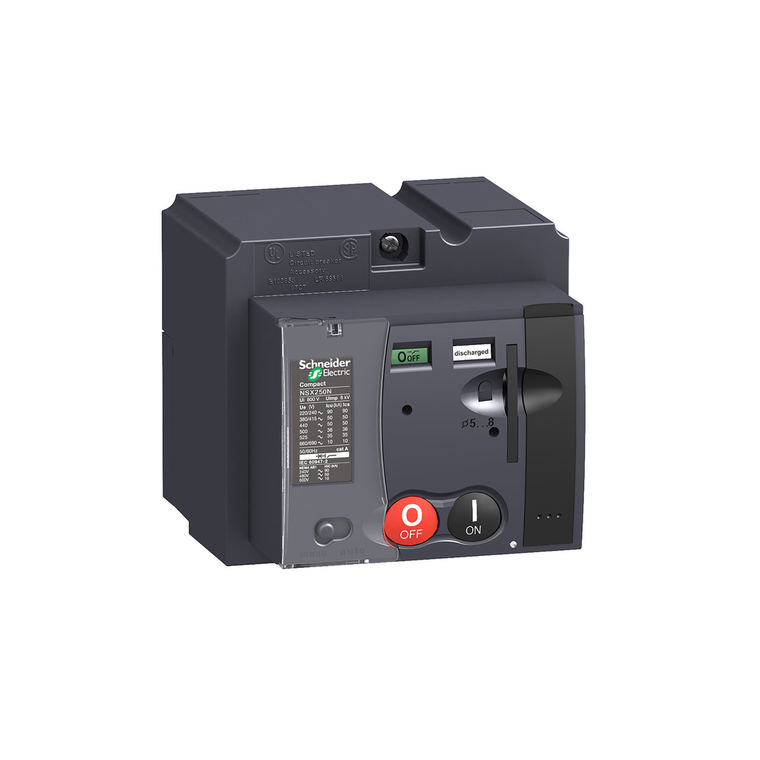

Schneider Electric LV431544 Standard motor mechanism module MT250, ComPacT NSX250, 48/60VDC

Schneider Electric LV431544 Standard motor mechanism module MT250, ComPacT NSX250, 48/60VDC

Schneider Electric
SKU:
LV431544
$94.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This is a standard motor mechanism for Compact NSX 250 and PowerPact Multistandard J frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this motor mechanism module is 48VDC to 60VDC. The consumption is less than 500W. Padlocking of the device remains possible. The motor mechanism is supplied with SDE adapter.
Additional Information
Device Application:
automatic spring charging
Provided Equipment:
SDE adaptor
Country of Origin:
France
[Uc] Control Circuit Voltage:
48...60 V DC
Range Compatibility:
ComPacT new generation NSX250 || ComPacT new generation NSX250 DC
Control Type:
standard
Line Rated Current:
250 A
Device Short Name:
MT250
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Control Signal Type:
maintained || impulse
Environmental Disclosure:
ENVPEP2308038EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Response Time:
< 700 ms open || < 80 ms closed
Warranty:
18 months
Maximum Power Consumption In W:
500 W - closing || 500 W - opening
Maximum Operating Frequency:
<= 2 cycles per minute
Sustainable Offer Status:
Green Premium product
Locking Options Description:
1 to 3 padlocks Ø 5 to Ø 8 || padlocking in OFF position
Mounting Mode:
fixed
Circularity Profile:
ENVEOLI2308038EN
Rohs Exemption Information:
Yes
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
motor mechanism
