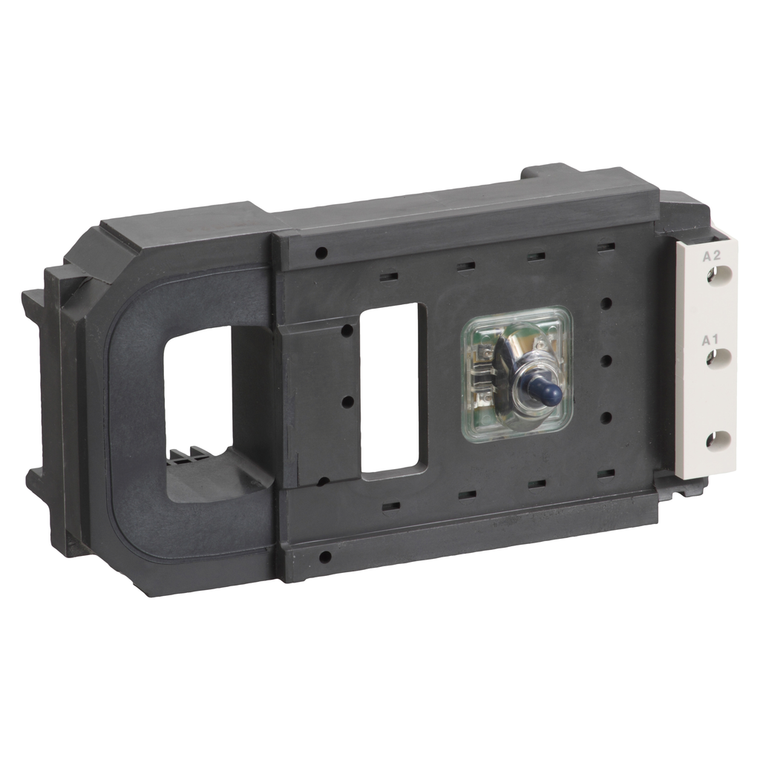

Schneider Electric LX1FL110 TeSys F - contactor coil - LX1FL - 110...120 V AC 40...400 Hz

(No reviews yet) Write a Review
SKU:
LX1FL110
MPN:
LX1FL110
Condition:
New
Inductance Of Closed Circuit:
1.85 H
Operating Time:
100...200 ms opening || 40...80 ms closing
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Inrush Power In Va:
1650-1650 VA 40...400 Hz cos phi 0.9 (at 20°C)
Warranty:
18 months
Ambient Air Temperature For Operation:
-5-55°C
Control Circuit Voltage Limits:
operational 0.85...1.1 Uc 40...400 Hz 55°C) || drop-out 0.25...0.5 Uc 40...400 Hz 55°C)
[Uc] Control Circuit Voltage:
110...120 V AC 40...400 Hz
Product Or Component Type:
contactor coil
Net Weight:
1.5 kg
Maximum Operating Rate:
1200 cyc/h 55°C
Range:
TeSys
Product Compatibility:
LC1F1250 || LC1F630
Control Circuit Type:
AC 40...400 Hz
Rohs Exemption Information:
Yes
Country of Origin:
Czechia
Mercury Free:
Yes
Hold-In Power Consumption In Va:
22-22 VA 40...400 Hz cos phi 0.3 (at 20°C)
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1505009EN
Coil Technology:
without built-in suppressor module
Range Compatibility:
TeSys TeSys F LC1F contactor
Weight:
1.5 kg
Heat Dissipation:
20-20 W 40...400 Hz
Device Short Name:
LX1FL
Mechanical Durability:
5 Mcycles
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Circularity Profile:
ENVEOLI1505009EN
Average Resistance:
6.45 Ohm inrush 20°C || 165 Ohm holding 20°C
$477.60

Description

TeSys F AC coil 110/115V 40-400Hz (voltage code F7/FE7), low sealed consumption, for TeSys F 3-pole and 4-pole contactors LC1F630, LC1F1250. It operates in the voltage limits 0.85-1.1 Uc and environments until 55°C. It provides to the contactor high operating rates until 1200 cycles/hour. Green Premium compliant (RoHS/REACh).
