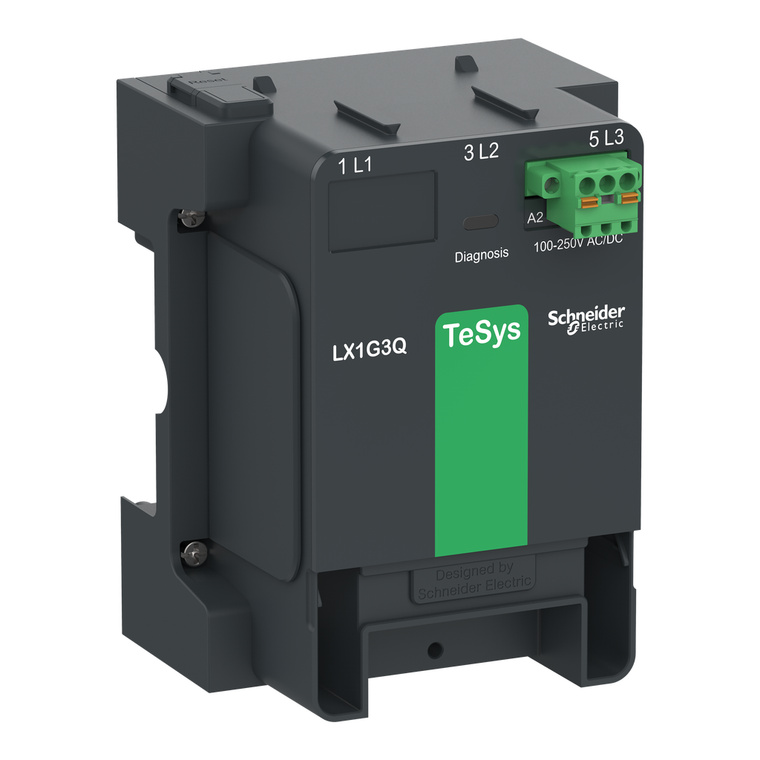

Schneider Electric LX1G3QEHEN Control module,TeSys Giga,48-130V AC/DC,for LC1G115-225/3P standard version

(No reviews yet) Write a Review
SKU:
LX1G3QEHEN
MPN:
LX1G3QEHEN
Condition:
New
Circularity Profile:
ENVEOLI2105013
Sustainable Offer Status:
Green Premium product
Operating Time:
20...35 ms opening || 40...55 ms closing
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Storage:
-60-80°C
Coil Technology:
built-in bidirectional peak limiting
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For m
Depth:
94.0 mm
Product Or Component Type:
contactor coil
Ip Degree Of Protection:
IP20 IEC 60529
Rohs Exemption Information:
Yes
Range:
TeSys
Connections - Terminals:
control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 || control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 || control circuit push-in termination 2
Range Compatibility:
TeSys G LX1G contactor coil
Halogen Content Performance:
Halogen free plastic parts product
Hold-In Power Consumption In Va:
15.6-15.6 VA 120 V AC, 60 Hz
Maximum Operating Rate:
600 cyc/mn 60°C
[Uc] Control Circuit Voltage:
48...130 V AC/DC 50/60 Hz
Inrush Power In Va:
630-630 VA 120 V AC, 60 Hz
Mechanical Durability:
5 Mcycles
Product Compatibility:
LC1G115...225
Poles Description:
3P
Environmental Disclosure:
ENVPEP2105013
Ambient Air Temperature For Operation:
-25-60°C
Inrush Power In W:
445.0 W DC
Hold-In Power Consumption In W:
4.4-4.4 W DC
Quantity Per Set:
1
Country of Origin:
China
Device Short Name:
LX1G
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Standards:
EN/IEC 60947-4-1 || UL 60947-4-1A || CSA C22.2 No 60947-4-1
Electromagnetic Compatibility:
EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity tes
Permissible Ambient Air Temperature Around The Device:
-40-70°C at Uc
Control Circuit Voltage Limits:
operational 0.8...1.1 Uc 60°C) || drop-out 0...0.45 Uc 60°C)
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Operating Altitude:
9842.52 ft (3000 m) without derating || 5000 m with derating factor
$235.00

Description

It is a 48-130V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
