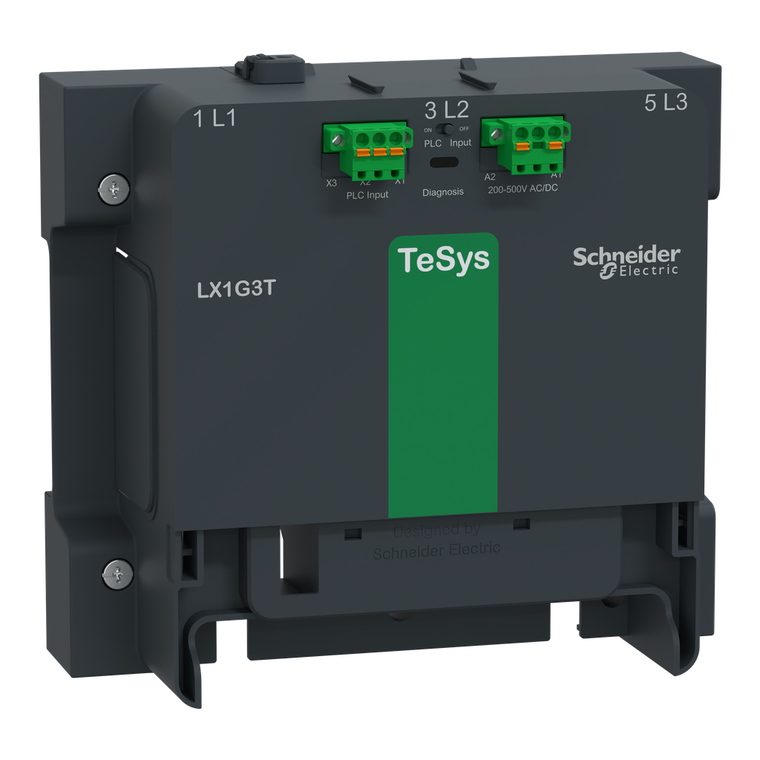

Schneider Electric LX1G3TLSEA Control module, LX1G, TeSys Giga, advanced contactor, 200-500VAC/DC, for LC1G630-800, 3 pole

(No reviews yet) Write a Review
SKU:
LX1G3TLSEA
MPN:
LX1G3TLSEA
Condition:
New
Environmental Disclosure:
ENVPEP2105013
Mercury Free:
Yes
Poles Description:
3P
Permissible Ambient Air Temperature Around The Device:
-40-70°C at Uc
Control Circuit Voltage Limits:
operational 0.8...1.1 Uc 60°C) || drop-out 0...0.45 Uc 60°C)
Operating Altitude:
9842.52 ft (3000 m) without derating || 5000 m with derating factor
Range:
TeSys
Device Short Name:
LX1G
Pvc Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Styrene, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For m
Mechanical Durability:
5 Mcycles
Rohs Exemption Information:
Yes
Product Or Component Type:
contactor coil
Halogen Content Performance:
Halogen free plastic parts product
Circularity Profile:
ENVEOLI2105013
Standards:
EN/IEC 60947-4-1 || UL 60947-4-1A || CSA C22.2 No 60947-4-1
Connections - Terminals:
control circuit push-in termination 1 0.2-2.5 mm² solid stranded without cable end sleeve AWG 26...AWG 12 || control circuit push-in termination 1 0.25-2.5 mm² flexible with cable end sleeve AWG 24...AWG 14 || control circuit push-in termination 2
Operating Time:
20...35 ms opening || 40...55 ms closing
Maximum Operating Rate:
600 cyc/mn 60°C
Coil Technology:
built-in bidirectional peak limiting
Electromagnetic Compatibility:
EMC immunity conforming to IEC 60947-4-1 || emission tests criteria A conforming to IEC 60947-4-1 || immunity to radiated radio-electrical interference - test level: 20 V/m conforming to EN/IEC 61000-4-3 || voltage dips and interruptions immunity tes
Quantity Per Set:
1
Weight:
2240 g
[Uc] Control Circuit Voltage:
200...500 V AC/DC 50/60 Hz
Ip Degree Of Protection:
IP20 IEC 60529
Ambient Air Temperature For Operation:
-25-60°C
Product Compatibility:
LC1G630...800
Eu Rohs Directive:
Compliant with Exemptions
Depth:
211 mm
Pollution Degree:
3 IEC 60947-1
Range Compatibility:
TeSys G LX1G contactor coil
Net Weight:
2240 g
China Rohs Regulation:
X
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-60-80°C
Country of Origin:
United States
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
$280.00

Description

It is a 200-500V AC/DC control module for 3 poles TeSys Giga 630-800 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.
