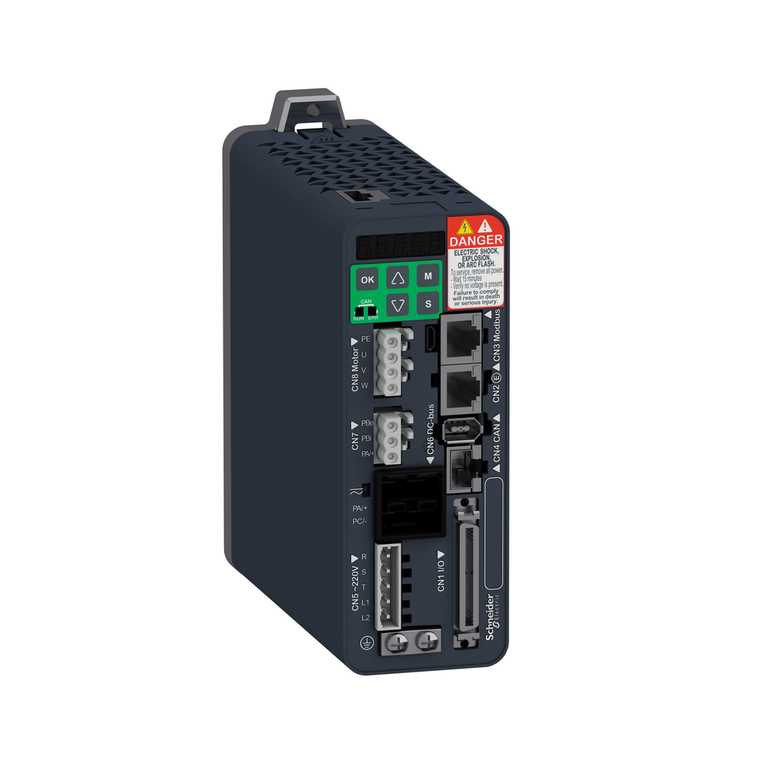

Schneider Electric LXM28SU07M3X motion servo drive, Lexium 28, sercos, single and three phase, 200 to 240V, 750W

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LXM28SU07M3X motion servo drive, Lexium 28, sercos, single and three phase, 200 to 240V, 750W

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LXM28SU07M3X

UPC:

MPN:

LXM28SU07M3X

Condition:

New

Output Current 3S Peak:

13.5 A 220 V

Relative Humidity:

5-95 % without condensation

Supply Frequency:

50/60 Hz - 5...5 %

Emc Filter:

without EMC filter

Sustainable Offer Status:

Green Premium product

Status Led:

1 LED (Red) charge || 1 LED (Green) RUN || 1 LED (Red) error

Protection Type:

against reverse polarity inputs signal || against short-circuits outputs signal || overcurrent motor || overvoltage motor || undervoltage motor || overheating motor || overload motor || overspeed motor

China Rohs Regulation:

X

Overvoltage Category:

III

Electrical Connection:

spring terminal 0.82...1 mm², AWG 18 L1-L2) || spring terminal 0.82...1 mm², AWG 18 R, S, T) || spring terminal 0.82...1 mm², AWG 18 U, V, W, PE) || spring terminal 0.82...1 mm², AWG 18 PA/+, PBe)

Net Weight:

1 kg

Product Or Component Type:

motion servo drive

Discrete Input Number:

8 programmable CN1) || 2 fast capture CN1) || 1 safety function STO CN9)

Reach Free Of Svhc:

Yes

Format Of The Drive:

compact housing

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mercury Free:

Yes

Pvc Free:

Yes

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...6561.68 ft (> 1000...2000 m) 1 % per 100 m

Product Certifications:

CE || cULus || CSA

Device Short Name:

LXM28S

Shock Resistance:

10 gn, type I IEC 60721-3-3

Rohs Exemption Information:

Yes

Weight:

1 kg

Country of Origin:

China

Discrete Output Number:

4 logic output CN1)12...24 V DC || 1 pulse train output (PTO) CN1)

Standards:

IEC 61800-5-1

Operating Position:

vertical

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Leakage Current:

1.3 mA

Discrete Input Voltage:

24 V DC logic

Signaling Function:

servo status and fault codes five 7-segment display units

Safety Function:

STO (safe torque off), Integrated

Output Voltage:

<= power supply voltage

Connector Type:

RJ45 CN3) || RJ45 CN4)

Discrete Output Voltage:

12...24 V DC

[Us] Rated Supply Voltage:

200...240 V - 10...15 %)three phase || 200...240 V - 20...15 %)single phase

Switching Frequency:

16 kHz

Marking:

CSA || cULus || CE

Line Current:

6 A 181.8 % 220 V, single phase || 6 A 160.6 % 220 V, three phase

Phase:

single phase || three phase

Continuous Output Current:

4.5 A 16 kHz

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Transmission Rate:

9600 bauds...115200 bauds (automatic detection) 100-100 m

Continuous Power:

750 W 220 V

Ambient Air Temperature For Storage:

-25-65°C
