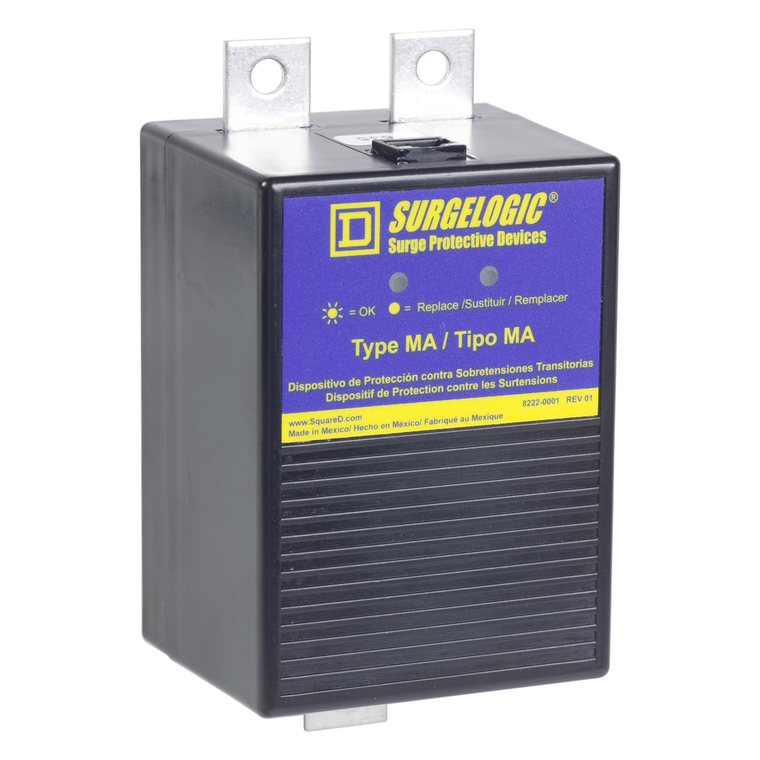

Schneider Electric MA1IMA241 Surge protection module, Surgelogic, MA, 240kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Schneider Electric
$950.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric MA1IMA241 Surge protection module, Surgelogic, MA, 240kA, 120/240 VAC, 1 phase, 3 wire, SPD type 1
Surgelogicâ„¢ Type MA_IBA systems are module assembelies intended for use on the line side of the service enterance and as replacements for Type EBA surgical protection devices. Being modular in design, this unit is able to provide a surge current rating of 120,000 Amps in severe electrical conditions through immediate responses from its advance diagnostic system. This product is UL and CSA certified.
- [Uc] Maximum Continuous Operating Voltage:
- 150 V
- Device Short Name:
- IMA
- Rohs Exemption Information:
- Yes
- Standards:
- UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
- Phase:
- 1 phase
- Accessory / Separate Part Category:
- replacement part
- Enclosure Material:
- Black Plastic
- Short-Circuit Protection:
- 200 kA
- Mounting Support:
- panel mounting
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 68.3 mm
- Product Or Component Type:
- surge protection module
- Local Signaling:
- status LED green normal operation
- Provided Equipment:
- alarm enable/disable switch
- Connections - Terminals:
- terminals
- Range Of Product:
- Surgelogic
- Nema Degree Of Protection:
- NEMA 1
- Surge Current:
- 240 kA
- Nominal Discharge Current:
- 20 kA
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ue] Rated Operational Voltage:
- 120/240 V AC
- Country of Origin:
- Mexico
- Wiring Configuration:
- 3-wire
