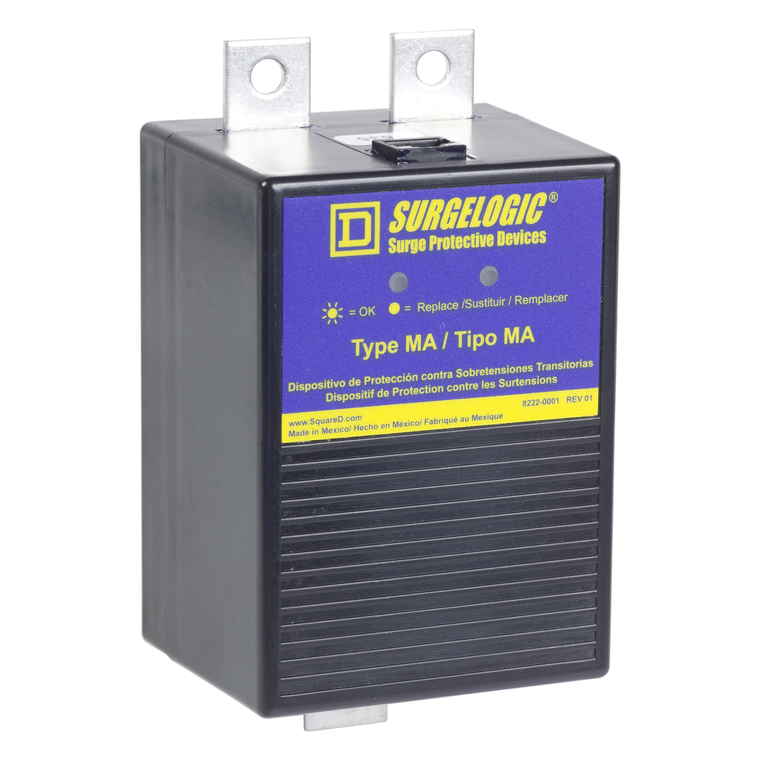

Schneider Electric MA3IMA241 Surge protection module, Surgelogic, MA, 240kA, 240/120 VAC delta, 3 phase, 4 wire, SPD type 1

(No reviews yet) Write a Review
SKU:
MA3IMA241
MPN:
MA3IMA241
Condition:
New
Country of Origin:
United States
Rohs Exemption Information:
Yes
Range Of Product:
Surgelogic
Connections - Terminals:
terminals
[Uc] Maximum Continuous Operating Voltage:
150 V
Mounting Support:
panel mounting
Standards:
UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Phase:
3 phase
Nema Degree Of Protection:
NEMA 1
Nominal Discharge Current:
20 kA
Local Signaling:
status LED green normal operation
Device Short Name:
IMA
Sustainable Offer Status:
Green Premium product
Short-Circuit Protection:
200 kA
Enclosure Material:
Black Plastic
Circularity Profile:
ENVEOLI2002011EN
Surge Current:
240 kA
[Ue] Rated Operational Voltage:
240/120 V delta AC
Accessory / Separate Part Category:
replacement part
Depth:
68.3 mm
Provided Equipment:
alarm enable/disable switch
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wiring Configuration:
4-wire
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP2002011EN
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
surge protection module
$1,462.50

Description

Surgelogic™ Type MA_IMA systems are Type EMA replacement modules. With a surge current rating of 240,000 Amps and enhanced EMI/RFI filtering this SPD uses the service voltage configuration High-leg delta system. It has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs).
