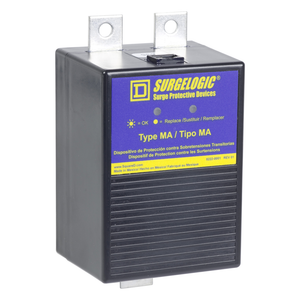

Schneider Electric MA5IMA24 Surge protection module, Surgelogic, MA, 240kA, 480VAC delta, 3 phase, 3 wire, SPD type 2

(No reviews yet) Write a Review
SKU:
MA5IMA24
MPN:
MA5IMA24
Condition:
New
Local Signaling:
status LED green normal operation
Mercury Free:
Yes
Depth:
68.3 mm
[Ue] Rated Operational Voltage:
480 V delta AC
Wiring Configuration:
3-wire
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
65-65°C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Phase:
3 phase
Circularity Profile:
ENVEOLI2002011EN
Mounting Support:
panel mounting
Device Short Name:
IMA
Provided Equipment:
alarm enable/disable switch
Nema Degree Of Protection:
NEMA 2
Short-Circuit Protection:
200 kA
Eu Rohs Directive:
Compliant with Exemptions
Product Or Component Type:
surge protection module
Accessory / Separate Part Category:
replacement part
Connections - Terminals:
terminals
Nominal Discharge Current:
20 kA
Standards:
UL 1449:ed. 4 || UL 1283:ed. 5 || CSA C22.2 No 8:1986 || ANSI/IEEE C62.41 || ANSI/IEEE C62.45 || NEC 285
Surge Current:
240 kA per phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Country of Origin:
Mexico
Range Of Product:
Surgelogic
Sustainable Offer Status:
Green Premium product
Warranty:
18 months
Environmental Disclosure:
ENVPEP2002011EN
[Uc] Maximum Continuous Operating Voltage:
550 V
Enclosure Material:
Black Plastic
$975.00

Description

Surgelogic™ EMA replacement modules surge protective devices are apart of modular brick parallel device. The EBA device has multi-stage suppression circuits consisting of field-proven, fast-acting metal oxide varistors (MOVs). These systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. This surge protection device is 3 phase, 4-wire + ground, 480 V, 240 kA surge current per phase, and short circuit current rating of 200 kA. They provide better performance with a diagnostic interface with push to test switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
