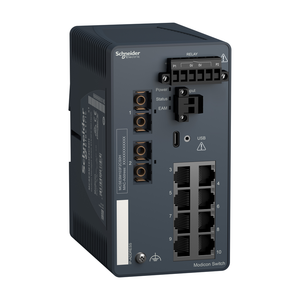

Schneider Electric MCSESM093F1CS0 Modicon Managed Switch - 8 ports for copper + 1 port for fiber optic single-mode

SKU:

MCSESM093F1CS0

UPC:

MPN:

MCSESM093F1CS0

Condition:

New

Mercury Free:

Yes

Concept:

Transparent Ready

Port Ethernet:

100BASE-FX - 1 fiber optic || 10/100BASE-TX - 8 copper cable

Supply Voltage Limits:

9.6-32 V DC SELV

Transmission Support Medium:

single mode optical fiber fiber optic || twisted shielded pairs cable CAT 5E copper cable

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Marking:

CE || cULus || RCM

Function Available:

security status || alarms (Traps) || system information || report

Net Weight:

0.50 kg

Mounting Support:

35 mm symmetrical DIN rail

Communication Port Protocol:

Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP

Redundancy:

HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP

Environmental Disclosure:

ENVPEP2003018EN

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Optic Fiber Length:

32.5 km 9/125µm

Communication Service:

TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection

Ambient Air Temperature For Operation:

0-60°C

Depth:

117.6 mm

Ethernet Cabling System:

TF switches

Standards:

UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1

Maximum Number Of Switches In A Ring:

50

Circularity Profile:

ENVEOLI2003018EN

Range Of Product:

Modicon

Cybersecurity:

port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner

Warranty:

18 months

Ethernet Service:

configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG

Electrical Connection:

removable connector 6 ways power supply

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Relative Humidity:

1-95 % non-condensing

Maximum Number Of Switches In Cascade:

unlimited

Integrated Connection Type:

duplex SC fiber optic || shielded RJ45 copper cable

Local Signaling:

for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)

Attenuation:

0-16 dB 9/125µm)

Power Consumption In W:

7 W

Product Certifications:

CE || UL || RCM || DNV || ATEX

Diagnostics Run Time:

signal contact || self test || MAC notification

Alarm Function:

power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Cable Distance Between Devices:

100 m copper cable

Weight:

0.50 kg

Alarm Output:

1 voltfree contact 1 A

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP30

Country of Origin:

Germany
