Schneider Electric

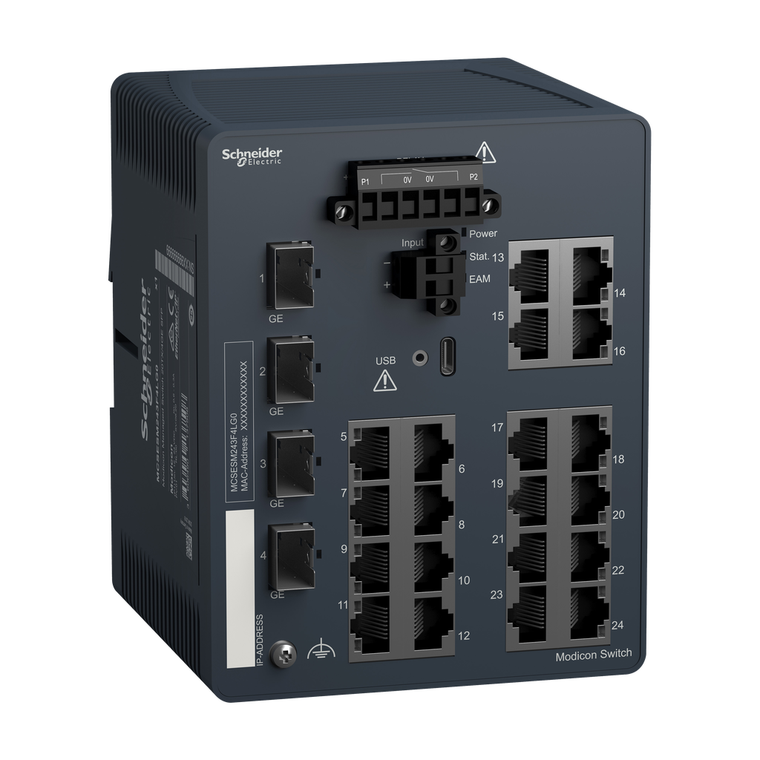

Schneider Electric MCSESM243F4LG0 network switch, Modicon Networking, managed, 20 ports for copper with 4Gigabit SFP

SKU:

MCSESM243F4LG0

UPC:

MPN:

MCSESM243F4LG0

Condition:

New

Ethernet Cabling System:

TF switches

Depth:

117.6 mm

Relative Humidity:

1-95 % non-condensing

Ip Degree Of Protection:

IP30

Alarm Function:

power supply fault || data link status || switch fault || temperature threshold || redundancy ring fault || incorrect configuration || external memory removed

Supply Voltage Limits:

9.6-32 V DC SELV

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Port Ethernet:

10/100BASE-TX - 20 copper cable || 100/1000 SFP - 4

Local Signaling:

for P1 P2 power supplies 1 dual colour LED (green/yellow) || for device status 1 dual colour LED (green/red) || for memory key status 1 dual colour LED (green/yellow) || for channel diagnostic 1 dual colour LED (green/yellow)

Power Consumption In W:

16 W

Integrated Connection Type:

shielded RJ45 copper cable || SFP port fiber optic (Gbit)

Marking:

CE || cULus || RCM

Ethernet Service:

configuration via web server || VLAN || multicast filtering || data stream control || IGMP Snooping || SNMP-Traps and SYSLOG

Maximum Number Of Switches In A Ring:

50

Electrical Connection:

removable connector 6 ways power supply

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Function Available:

security status || alarms (Traps) || system information || report

Mercury Free:

Yes

Product Certifications:

CE || UL || RCM || DNV || ATEX

Range Of Product:

Modicon

Maximum Number Of Switches In Cascade:

unlimited

Net Weight:

1.05 kg

Country of Origin:

Germany

Directives:

2014/35/EU - low voltage directive || 2014/30/EU - electromagnetic compatibility

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Diagnostics Run Time:

signal contact || self test || MAC notification

Cybersecurity:

port hardening || IP-based port security || MAC-based port security || port-based access control || role-based access control || RADIUS assignment || HTTPS || DoS prevention || VLAN-based ACL || audit trail || SNMP logging || pre-login banner

Maximum Cable Distance Between Devices:

100 m copper cable

Communication Service:

TFTP || Quality of Service (QoS) || port monitoring || port mirroring || address conflict detection

[Us] Rated Supply Voltage:

12...24 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Standards:

UL 61010-2-201 || EN/IEC 61131-2 || EN/IEC 62368-1

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

0-60°C

Product Or Component Type:

Ethernet TCP/IP managed switch

Redundancy:

HiPER ring || RSTP || link aggregation || link backup || redundant network coupling || MRP

Circularity Profile:

ENVEOLI2003019EN

Concept:

Transparent Ready

Transmission Support Medium:

twisted shielded pairs cable CAT 5E copper cable || fiber optic cable fiber optic (Gbit)

Communication Port Protocol:

Ethernet TCP/IP || SSH || HTTP || HTTPS || SNMP || RS232 || SFTP || SCP || LLDP || Telnet || SNTP

Environmental Disclosure:

ENVPEP2003019EN

Mounting Support:

35 mm symmetrical DIN rail

Weight:

1.05 kg
