Schneider Electric

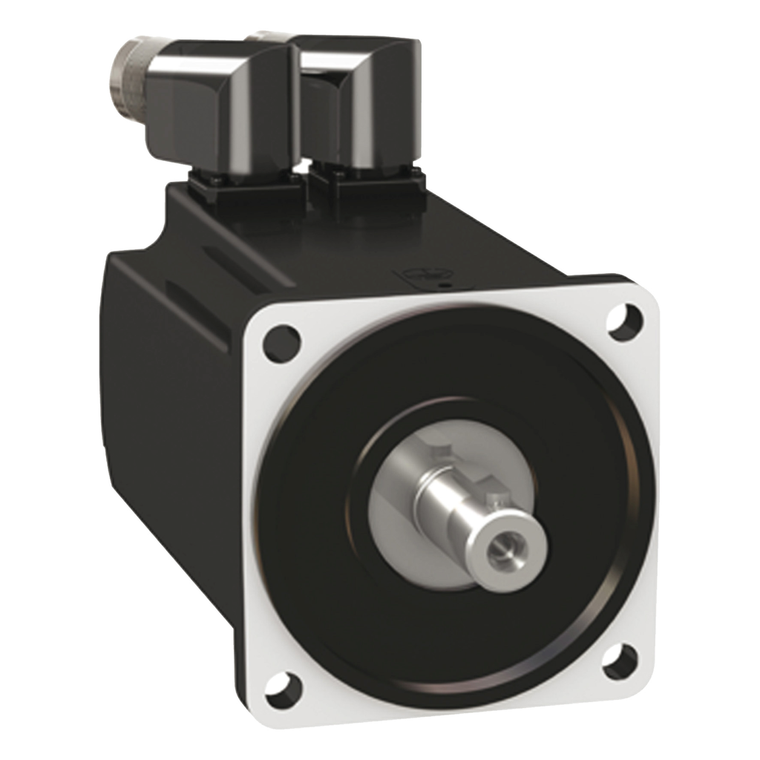

Schneider Electric MH31002P12A2200 servo motor MH3 100 5,8Nm,key,multi,no brake,IP65/IP67,4kRPM

SKU:

MH31002P12A2200

UPC:

MPN:

MH31002P12A2200

Condition:

New

Encoder Type:

multiturn SinCos Hiperface

Stator Resistance:

1.97 Ohm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Second Shaft:

without second shaft end

Motor Flange Size:

100 mm

Pvc Free:

Yes

Number Of Motor Poles:

10

Circularity Profile:

N/A

Net Weight:

4.92 kg

Mounting Holes Diameter:

9 mm

Range Compatibility:

PacDrive 3

Ip Degree Of Protection:

IP65 standard

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Centring Collar Diameter:

95 mm

Device Short Name:

MH3

Continuous Stall Current:

5.04 A

Country of Origin:

United States

Shaft Length:

40 mm

Continuous Stall Torque:

6 N.m, 115...480 V, three phase

Weight:

4.92 kg

Holding Brake:

without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP111002EN

Mounting Support:

international standard flange

Peak Stall Torque:

18 N.m, 115...480 V, three phase

Nominal Torque:

5.67 N.m LXM52 4.81 mA, 115 V, 1 phase || 5.33 N.m LXM52 4.58 mA, 230 V, 1 phase || 4.67 N.m LXM52 4.1 mA, 400 V, 3 phase || 4.2 N.m LXM52 3.73 mA, 480 V, 3 phase || 5.67 N.m LXM62 4.81 mA, 115 V, 1 phase || 5.33 N.m LXM62 4.58 mA, 230 V, 1 phase ||

Electrical Connection:

rotatable right-angled connectors

Maximum Current Irms:

17.4 A

Nominal Speed:

1000 rpm LXM52 4.81 mA, 115 V, 1 phase || 2000 rpm LXM52 4.58 mA, 230 V, 1 phase || 4000 rpm LXM52 4.1 mA, 400 V, 3 phase || 5000 rpm LXM52 3.73 mA, 480 V, 3 phase || 1000 rpm LXM62 4.81 mA, 115 V, 1 phase || 2000 rpm LXM62 4.58 mA, 230 V, 1 phase ||

Shaft Diameter:

19 mm

Key Width:

6 mm

Stator Electrical Time Constant:

5 ms

Continuous Power:

2270 W

Nominal Output Power:

0.59 W, 115 V || 1.12 W, 230 V || 1.95 W, 400 V || 2.27 W, 480 V

Product Or Component Type:

AC servo motors

Torque Constant:

1.19 N.m/A 120°C

China Rohs Regulation:

X

Width:

6 mm

Stator Inductance:

8.24 mH

Maximum Radial Force Fr:

990 N 1000 rpm || 790 N 2000 rpm || 690 N 3000 rpm || 620 N 4000 rpm || 580 N 5000 rpm

Speed Feedback Resolution:

128 periods

Centring Collar Depth:

3.5 mm

Phase:

three phase

Number Of Mounting Holes:

4

[Us] Rated Supply Voltage:

115...480 V

Circle Diameter Of The Mounting Holes:

115 mm
