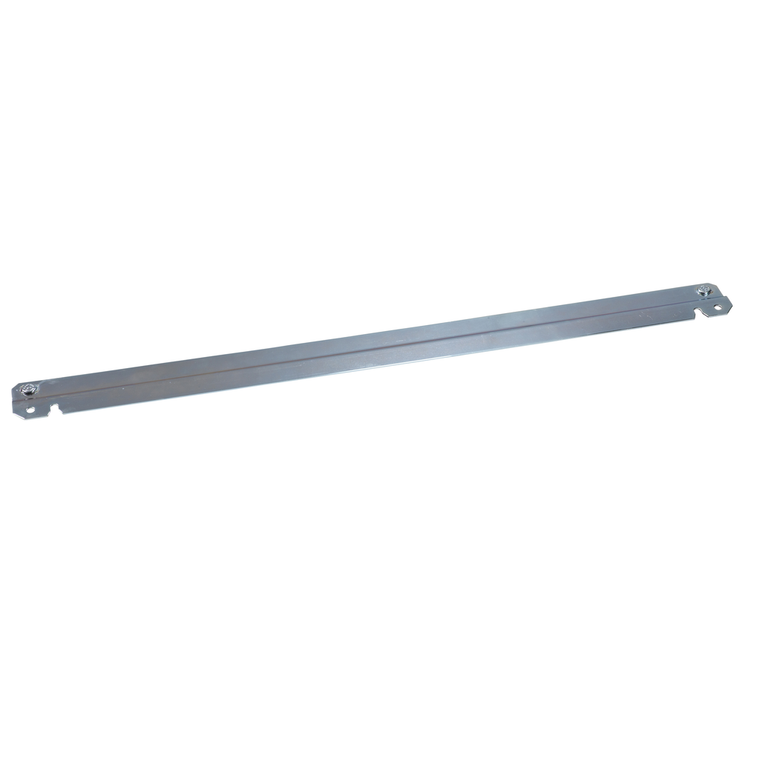

Schneider Electric NSYAEFPFS3DW100 Wm 2 Steel Wall Fixing Bkts 1000

(No reviews yet) Write a Review
SKU:
NSYAEFPFS3DW100
UPC:
3606480323041
Condition:
New
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Range:
Spacial
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
3.262 kg
Device Application:
multi-purpose
Accessory / Separate Part Category:
fixing accessory
Enclosure Nominal Dimensions:
H: 800 mm W: 1000 mm D: 300 mm || - H: 1000 mm W: 1000 mm D: 300 mm || - H: 1200 mm W: 1000 mm D: 300 mm || - H: 1200 mm W: 1000 mm D: 400 mm || - H: 1400 mm W: 1000 mm D: 400 mm
Depth:
wall-enclosure separation 7.5 mm
Toxic Heavy Metal Free:
Yes
Width:
1000 mm
Mounting Location:
top and bottom, on rear of the enclosure
Quantity Per Set:
set of 1
Device Composition:
fixing screws || 2 lug || 2 pre-mounted sealing gasket
Environmental Disclosure:
ENVPEP100104EN
Product Or Component Type:
wall fixing support
Sustainable Offer Status:
Green Premium product
Height:
fixing centers 47 mm
Warranty:
18 months
Range Compatibility:
Spacial Spacial S3DC
Circularity Profile:
N/A
Permanent Permissible Load:
350 kg
Material:
zinc coated steel
Fixing Mode:
screwed M8 - inside
Reach Free Of Svhc:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Brochure:
View
Datasheet:
View
$167.35
