Schneider Electric NSYBRF8PLAG 7035 19 Fixed Chassis 8U Pla5X7
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

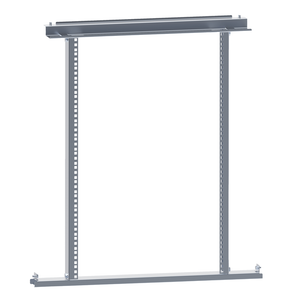

19" fixed chassis 8U forPLA enclosure H500xW750mm
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- multi-purpose
- Rack Type:
- fixed
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP110921EN
- Quantity Per Set:
- set of 1
- Number Of Units 19":
- 8
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Material:
- sheet steel
- Product Or Component Type:
- 19" rack
- Mercury Free:
- Yes
- Height:
- nominal 500 mm
- Range:
- Thalassa
- Range Compatibility:
- Thalassa Thalassa PLA
- Accessory / Separate Part Category:
- mounting accessory
- Lock Type:
- lock 5 mm double bar
- Thickness:
- 2 mm
- Fixing Mode:
- by fixing element
- Device Composition:
- fixing elements || 2 19" uprights
- Circularity Profile:
- N/A
- Permanent Permissible Load:
- 3 kg per unit
- Color:
- Gray RAL 7035)
- Surface Finish:
- epoxy-polyester powder
- Mounting Location:
- front of enclosure
- Catalog:
- View
- Datasheet:
- View
