Schneider Electric

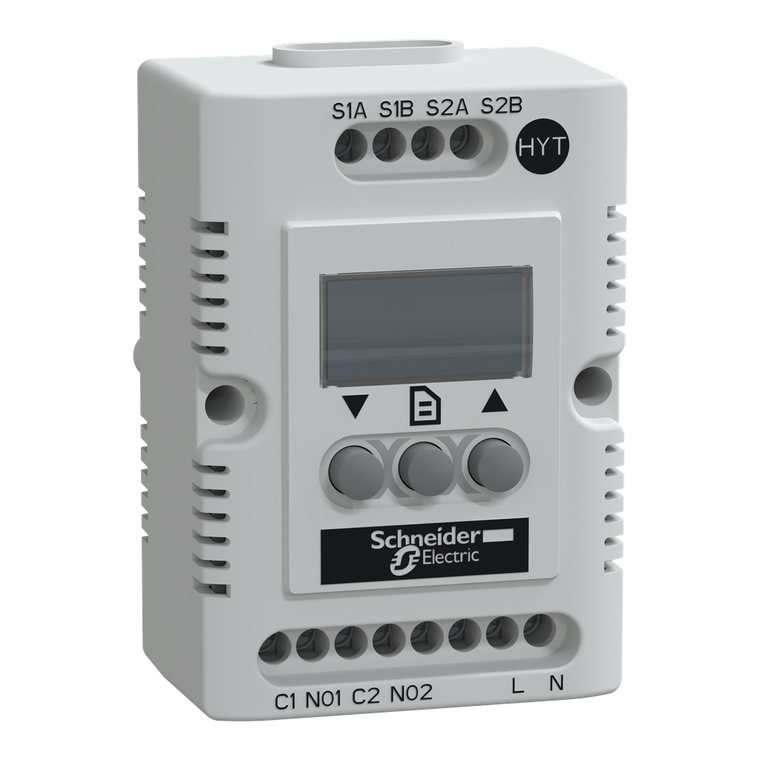

Schneider Electric NSYCCOHYT120VID Hygrotherm110-120V.

SKU:

NSYCCOHYT120VID

UPC:

3606480152580

MPN:

Condition:

New

Product Name:

ClimaSys CC

Mounting Location:

35 mm DIN rail || cross rails || on mounting plate || Spacial upright

Eu Rohs Directive:

Compliant with Exemptions

Ambient Air Temperature For Operation:

-40-80 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range:

ClimaSys

Product Certifications:

UR

Hysteresis:

0.03

Display Type:

OLED screen

Flame Retardance:

self-extinguishing conforming to UL94 (material V0)

Temperature Setting Range:

-40-80 °C

Maximum Switching Capacity:

4 A 120 V AC

Width:

external 56 mm

Depth:

external 44 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Humidity Setting Range:

20-80 %

Material:

PC

Product Or Component Type:

electronic hygrotherm

Circularity Profile:

N/A

Sensor Type:

optional NTC external sensor

Height:

external 85 mm

Lead Time:

Usually Ships within 4 Weeks

Hysteresis:

2 K programmed value

Mercury Free:

Yes

Input Voltage:

90...140 V AC

Warranty:

18 months

Number Of Outputs:

2 ventilation/heating function

Information Displayed:

temperature in °F || relative humidity || temperature in °C

Electrical Connection:

8 connectors 2.5 mm²

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP2103012EN

Rohs Exemption Information:

Yes

Color:

Light gray

Mounting Mode:

by screws || clipped

Catalog:

View

Datasheet:

View
