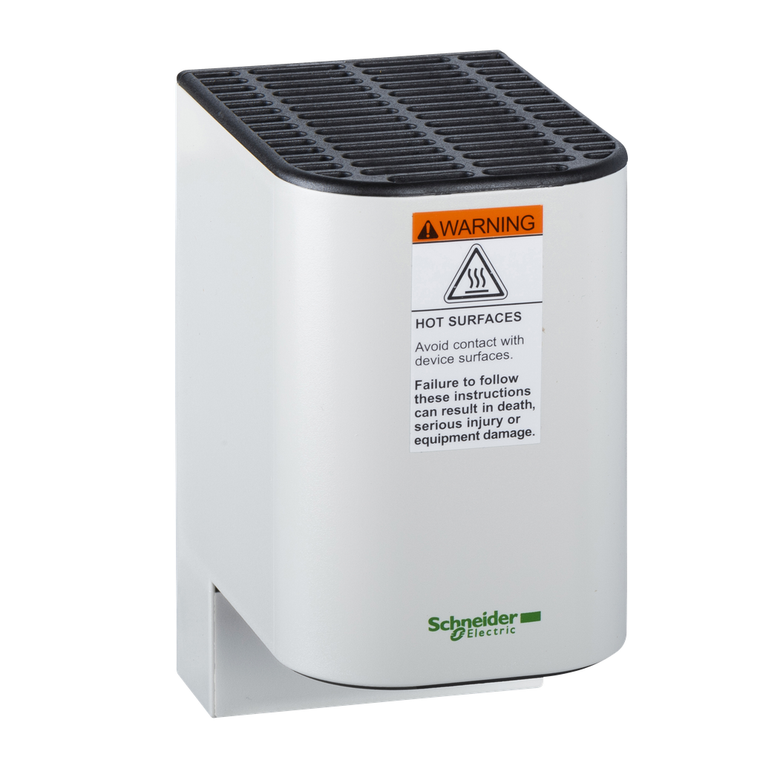

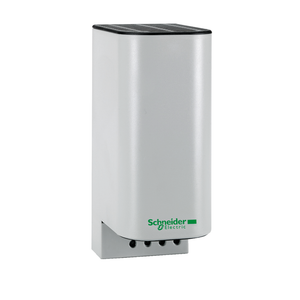

Schneider Electric NSYCR50WU1C ClimaSys PTC heating resistance 50W, 12-24V insulate
Schneider Electric
$83.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYCR50WU1C ClimaSys PTC heating resistance 50W, 12-24V insulate
ClimaSys PTC heating resistance insulate. 50W, 12-24V DC. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.
- Fixing Mode:
- by clips
- Country of Origin:
- Spain
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Width:
- external: 38 mm
- Range:
- ClimaSys
- Ip Degree Of Protection:
- IP20
- Input Voltage:
- 12...24 V AC/DC 50/60 Hz
- Product Certifications:
- VDE
- Electrical Insulation Class:
- class II
- Electrical Connection:
- 4 screw terminals 2.5 mm²
- Condition Of Use:
- air sealed enclosure || heaters must be installed with a thermal controller || electrical protection is needed
- Rohs Exemption Information:
- Yes
- Depth:
- external : 75 mm
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- resistance heater
- Circularity Profile:
- N/A
- Mounting Support:
- 35 mm DIN rail
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Position:
- vertical
- Height:
- external: 98 mm
- Mercury Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-70°C
- Product Name:
- ClimaSys CR
- Material:
- body extruded aluminium || Cover plastic
- Warranty:
- 18 months
- Power Range:
- 50 W
- Environmental Disclosure:
- ENVPEP2103011EN
