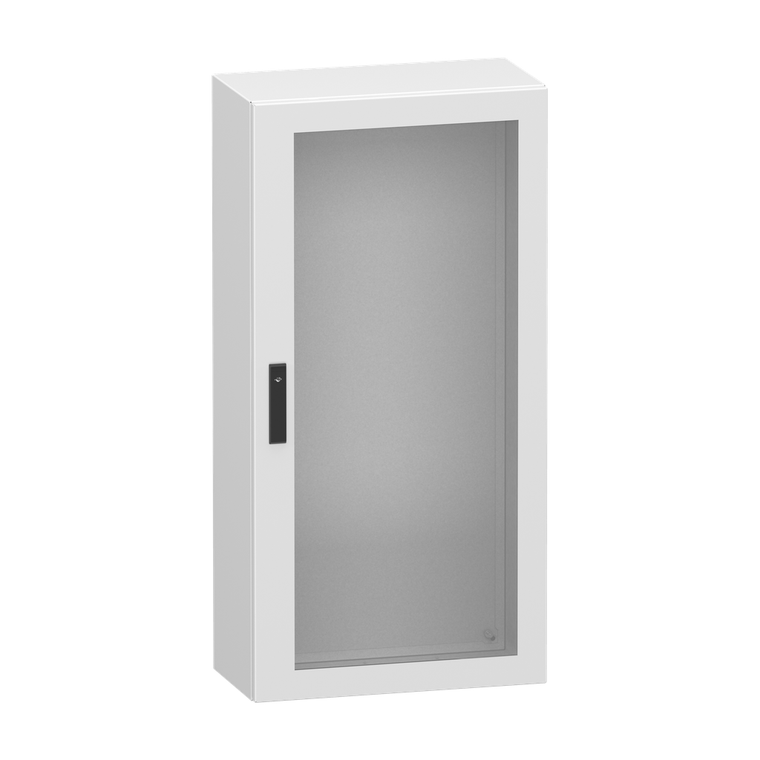

Schneider Electric NSYCRN126300T Glazed steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK08, RAL7035
Schneider Electric
$1,374.58
Glazed steel door, PanelSeT CRN, without mounting plate, 1200x600x300mm, IP66, IK08, RAL7035
- Variant Particularity:
- single piece body
- Range:
- PanelSeT
- Net Weight:
- 35 kg
- Enclosure Nominal Depth:
- 300 mm
- Lock Type:
- 3 points lock, 5 mm double-bar
- Weight:
- 35 kg
- Type Of Gland Plate:
- standard
- Mounting Plate Description:
- without mounting plate
- Door Type:
- Glass
- Circularity Profile:
- N/A
- Ip Degree Of Protection:
- IP66 IEC 60529
- Device Application:
- multi-purpose
- Height:
- 1200 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Accessibility For Operation:
- front
- Standards:
- IEC 62208
- Installation Accessory Type:
- wall-mounting
- Material:
- body steel || door steel and security glass
- Number Of Doors:
- front face 1
- Ik Degree Of Protection:
- IK08 IEC 62262
- Enclosure Nominal Height:
- 1200 mm
- Product Name:
- PanelSeT CRN
- Mercury Free:
- Yes
- Color:
- Gray RAL 7035)
- Door Opening Side:
- reversible 120°)
- Environmental Disclosure:
- ENVPEP100104EN
- Product Certifications:
- cUL || UL
- Removable Parts:
- door by hinges || cable gland plate by screws
- Width:
- 600 mm
- Sustainable Offer Status:
- Green Premium product
- Surface Finish:
- epoxy-polyester powder
- Enclosure Nominal Width:
- 600 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Device Composition:
- 1 body || 1 cable gland plate || 1 door || 1 lock
- Country of Origin:
- Spain
- Product Or Component Type:
- compact enclosure
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Rohs Exemption Information:
- Yes
