Schneider Electric

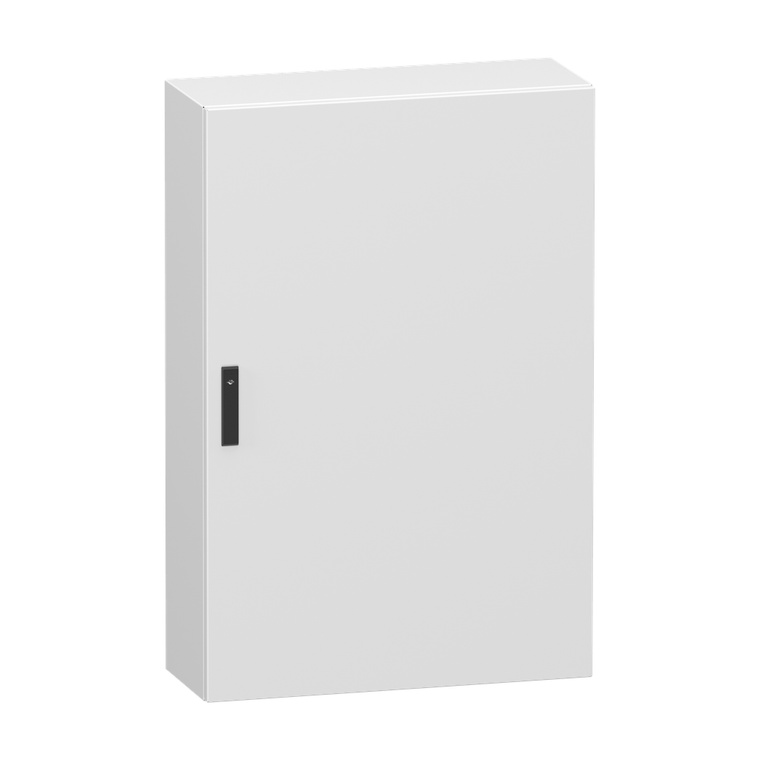

Schneider Electric NSYCRN128300 Plain steel door, PanelSeT CRN, without mounting plate, 1200x800x300mm, IP66, IK10, RAL7035

SKU:

NSYCRN128300

UPC:

MPN:

NSYCRN128300

Condition:

New

Height:

1200 mm

Installation Accessory Type:

wall-mounting

Width:

800 mm

Door Type:

Solid

Product Certifications:

cUL || UL

Product Or Component Type:

compact enclosure

Device Composition:

1 body || 1 door || 1 lock || 2 cable gland plate bottom

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ip Degree Of Protection:

IP66 IEC 60529

Surface Finish:

epoxy-polyester powder

Lock Type:

3 points lock, 5 mm double-bar

Ik Degree Of Protection:

IK10 IEC 62262

Range:

PanelSeT

Device Application:

multi-purpose

Rohs Exemption Information:

Yes

Country of Origin:

Spain

Number Of Doors:

front face 1

Standards:

IEC 62208

Color:

Gray RAL 7035)

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Plate Description:

without mounting plate

Circularity Profile:

N/A

Door Opening Side:

reversible 120°)

Variant Particularity:

single piece body

Warranty:

18 months

Material:

body steel

Sustainable Offer Status:

Green Premium product

Weight:

44.2 kg

Enclosure Nominal Width:

800 mm

Enclosure Nominal Height:

1200 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Accessibility For Operation:

front

Type Of Gland Plate:

standard

Environmental Disclosure:

ENVPEP100104EN

Enclosure Nominal Depth:

300 mm

Removable Parts:

door by hinges || cable gland plate by screws

Net Weight:

44.2 kg

Product Name:

PanelSeT CRN
