Schneider Electric

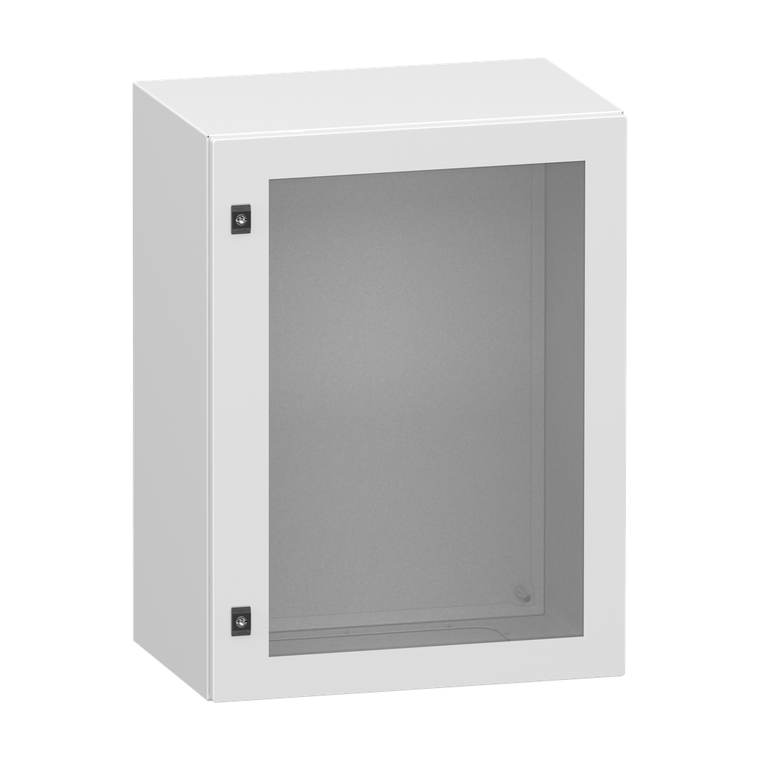

Schneider Electric NSYCRN86400T Glazed steel door, PanelSeT CRN, without mounting plate, 800x600x400mm, IP66, IK08, RAL7035

SKU:

NSYCRN86400T

UPC:

MPN:

NSYCRN86400T

Condition:

New

Material:

body steel || door steel and security glass

Height:

800 mm

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 62208

Weight:

30 kg

Range:

PanelSeT

Door Type:

Glass

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Nominal Depth:

400 mm

Type Of Gland Plate:

standard

Enclosure Nominal Width:

600 mm

Installation Accessory Type:

wall-mounting

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL || cUL

Rohs Exemption Information:

Yes

Device Application:

multi-purpose

Surface Finish:

epoxy-polyester powder

Mounting Plate Description:

without mounting plate

Country of Origin:

Spain

Color:

Gray RAL 7035)

Net Weight:

30 kg

Lock Type:

3 mm double-bar lock

Variant Particularity:

single piece body

Number Of Doors:

front face 1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP100104EN

Ik Degree Of Protection:

IK08 IEC 62262

Enclosure Nominal Height:

800 mm

Door Opening Side:

reversible 120°)

Mercury Free:

Yes

Accessibility For Operation:

front

Width:

600 mm

Removable Parts:

door by hinges || cable gland plate by screws

Product Or Component Type:

compact enclosure

Product Name:

PanelSeT CRN

Device Composition:

1 body || 1 cable gland plate || 1 door || 1 lock

Circularity Profile:

N/A
