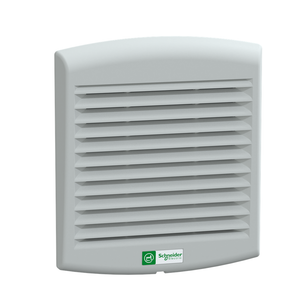

Schneider Electric NSYCVF850M115PF Filterfan 850M3/H 115V Ip54

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYCVF850M115PF Filterfan 850M3/H 115V Ip54

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYCVF850M115PF

UPC:

3.60648E+12

MPN:

Condition:

New

Eu Rohs Directive:

Compliant with Exemptions

Bearing Type:

ball

Type Of Ventilation Filter:

standard

Width:

external 316 mm

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

103...122 V

Color:

outlet grille Gray RAL 7035)

Power Range:

145 W 50 Hz || 182 W 60 Hz

Lead Time:

Usually Ships within 4 Weeks

Line Rated Current:

1.279-1.279 A 50 Hz || 1.6-1.6 A 60 Hz

Maximum Pressure:

170 Pa flow rate 0 m³/h

Circularity Profile:

ENVEOLI1107017EN

Range:

ClimaSys

Device Composition:

1 axial motor || 2 protective grille on the front and rear surfaces || 1 filter front of axial motor || 1 outlet grille front || 1 cut-out template

Connections - Terminals:

terminal block

Ip Degree Of Protection:

IP54

Product Name:

ClimaSys CV

Ambient Air Temperature For Operation:

-15-60 °C

Depth:

external 162 mm

Net Weight:

4.1 kg

Product Or Component Type:

fan

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Noise Level:

77-78 dB

Sustainable Offer Status:

Green Premium product

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Cut-Out Dimensions:

291 x 291 mm

Input Voltage:

115 V 50/60 Hz

Environmental Disclosure:

ENVPEP110717EN

Height:

external 336 mm

Material:

outlet grille injected thermoplastic (ASA PC)

Condition Of Use:

filter must be cleaned and replaced regularly || overfrequent filter replacement should be avoided || outside temperature must be 5 °C lower than inside temperature || flow rates depends on the work point, see ProClima software || surrounding environ

Warranty:

18 months

Mercury Free:

Yes

Air Flow:

free flow rate with standard filter: 983 m3/h at 50 Hz || free flow rate with standard filter: 944 m3/h at 60 Hz
